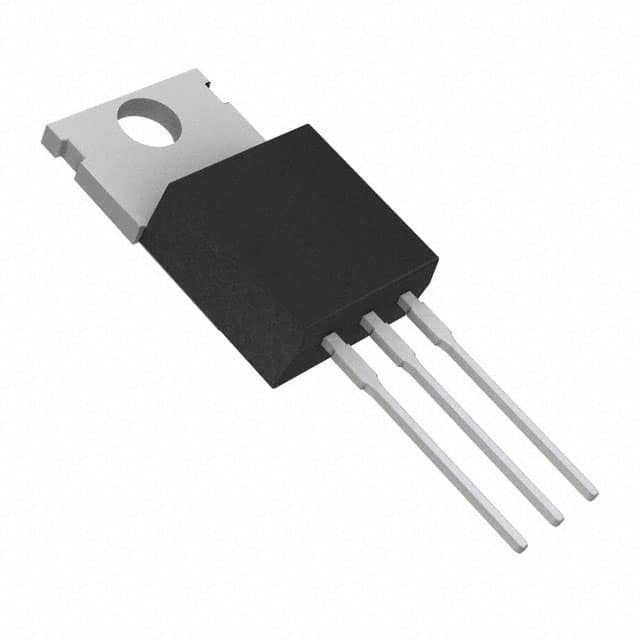

BD240B-S

SKU: 145409

Manufacturer: Bourns

Trans GP BJT PNP 80V 2A 3-Pin(3+Tab) TO-220

3220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.7@0.2A@1A
Maximum DC Collector Current (A)	2
Minimum DC Current Gain	40@0.2A@4V
Maximum Power Dissipation (mW)	30000
Operating Temperature-Min	-65
Operating Temperature-Max	150
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	8.72(Max)
Package Length	10.4(Max)
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
