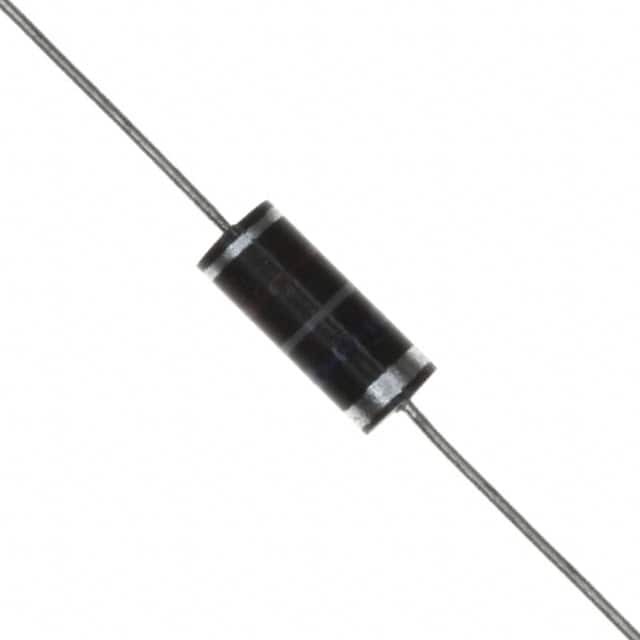

9250A-685-RC

SKU: 114706

Manufacturer: Bourns

RF Choke Shielded/Molded Wirewound 6800uH 10% 250KHz 40Q-Factor Ferrite 0.027A 111Ohm DCR AXL Bag

2330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	RF Choke
Technology	Wirewound
Protection Style	Shielded/Molded
Core Body Material	Ferrite
Inductance (H)	6800u
Tolerance	10%
Inductance Test Frequency (Hz)	250K
Maximum DC Current (A)	0.027
Maximum Saturation Current (A)	0.016(Typ)
Maximum DC Resistance (Ohm)	111
Minimum Quality Factor	40
Quality Test Frequency (Hz)	250K
Minimum Self Resonant Frequency (Hz)	0.66M
Terminal Form	Through Hole
Lead Style	Axial
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Bag
Product Diameter (mm)	4.36
