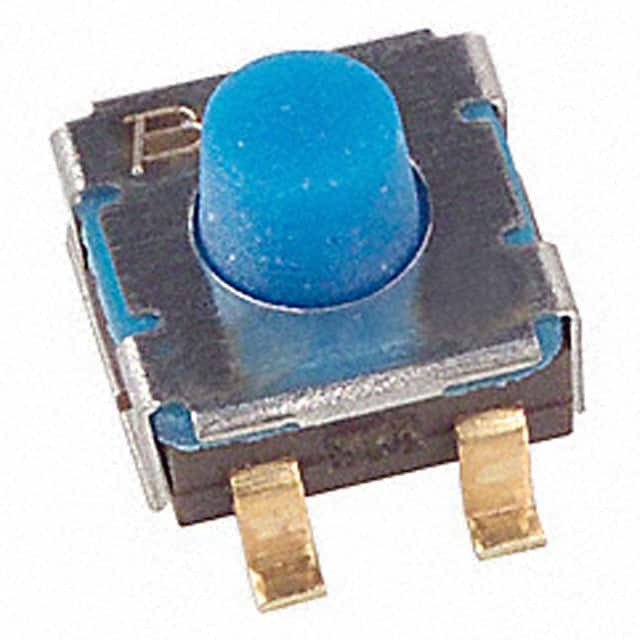

7914G-1-032E

SKU: 86416

Manufacturer: Bourns

Switch Tactile N.O. SPST Round Button Gull Wing 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD T/R

2300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Type	Key Switch
Pole Throw Configuration	SPST
Actuator Style	Round Button
Switch Configuration	N.O.
Current Rating-Max(A)	0.1@16VAC 16VDC
Dielectric Strength	250VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	100
Mechanical Life (Cycles)	100000
Operating Force (N)	2.94
Actuator Length (mm)	0.89
Row Spacing (mm)	5.5
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	4
Terminal Pitch (mm)	2.54
Base Body Material	Thermoplastic
Body Orientation	Straight
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	5
Depth (mm)	6.2
Height (mm)	3.43
Contact Body Material	Gold
