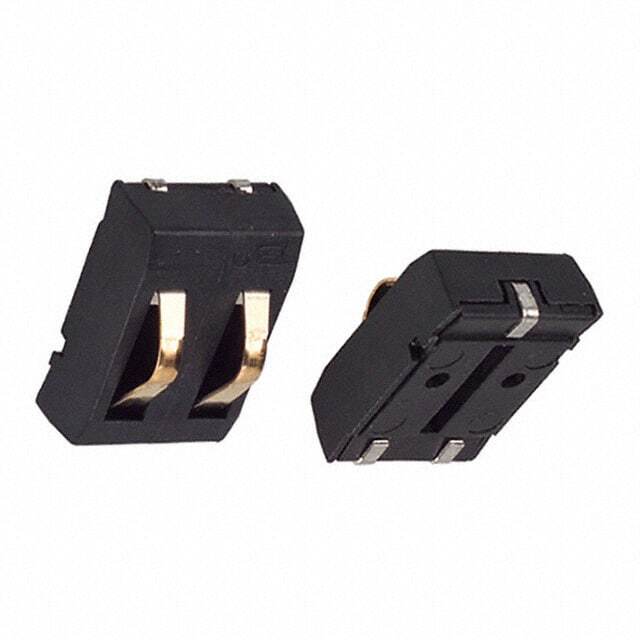

70ADJ-2-ML0G

SKU: 109161

Manufacturer: Bourns

Conn Modular Contact M 2 POS 4mm Solder ST SMD 2 Terminal 1 Port T/R

1410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
SVHC	Yes
Automotive	No
PPAP	No
Type	Modular Contact
Gender	M
Number of Contacts	2
Number of Terminals	2
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	4
Body Orientation	Straight
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	30VDC
Insulation Resistance (MOhm)	500
Maximum Contact Resistance (mOhm)	25
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	5000
Packing Method	Tape and Reel
Length (mm)	7.7
Depth (mm)	11
Height (mm)	5.65
Terminal Form	Surface Mount
Contact Plating	Gold Over Nickel
