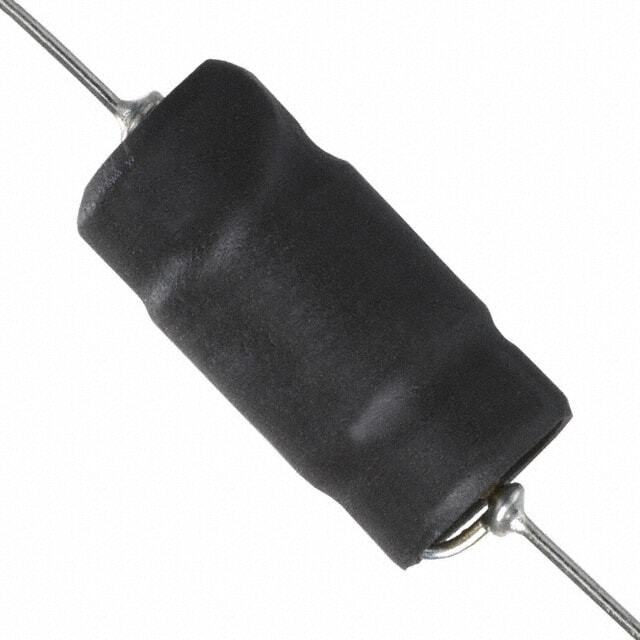

5900-470-RC

SKU: 51181

Manufacturer: Bourns

High Current RF Choke Bobbin Core 47uH 10% 1KHz Ferrite 3.1A 0.045Ohm DCR AXL

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	High Current RF Choke
Technology	Bobbin Core
Core Body Material	Ferrite
Inductance (H)	47u
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	3.1
Maximum Saturation Current (A)	3.8
Maximum DC Resistance (Ohm)	0.045
Minimum Self Resonant Frequency (Hz)	6.5M(Typ)
Terminal Form	Through Hole
Lead Style	Axial
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Product Diameter (mm)	11.51
