4606X-102-102LF

SKU: 150172

Manufacturer: Bourns

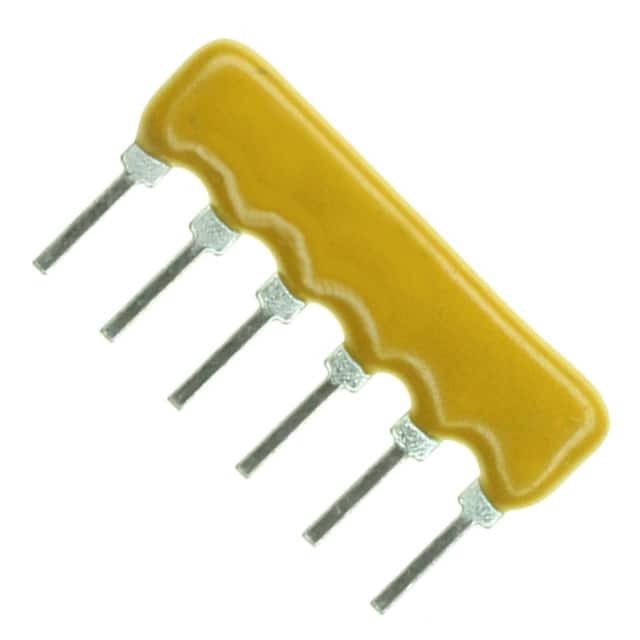

Res Thick Film NET 1K Ohm 2% 0.75W(3/4W) ±100ppm/°C ISOL Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk

2390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.29.00.00
Automotive	No
PPAP	No
Type	Network
Number of Resistors	3
Resistance Value (Ohm)	1K
Tolerance	2%
Voltage Rating-Max (V)	100
Power Rating (W)	0.75 (3/4)
Power Rating per Resistor (W)	0.3
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±100
Temperature Range @ Derated Power (°C)	70 to 125
Circuit Designator	ISOL
Case Style	Conformal Coated
Terminal Form	Pin
Number of Terminals	6
Terminal Pitch (mm)	2.54
Packing Method	Bulk
Package Type	SIP
Package Shape	Single Line
Case Code - in	SIP
Length (mm)	15.19
Depth (mm)	2.49
Height (mm)	5.08
Seated Plane Height (mm)	5.08
