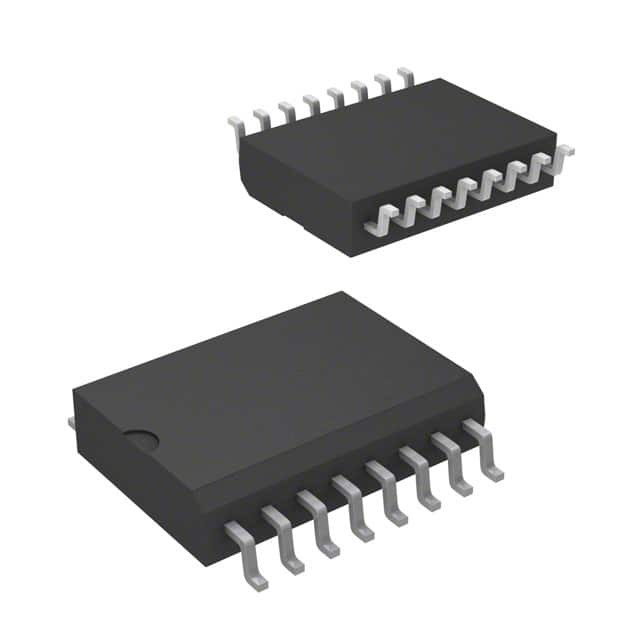

4416P-1-100LF

SKU: 44020

Manufacturer: Bourns

Res Thick Film NET 10 Ohm 1 Ohm 1.6W ±250ppm/°C ISOL Molded 16-Pin SOL Gull Wing SMD T/R

1340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.20
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Network
Number of Resistors	8
Resistance Value (Ohm)	10
Tolerance	1Ohm
Voltage Rating-Max (V)	50
Power Rating (W)	1.6
Power Rating per Resistor (W)	0.16
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±250
Temperature Range @ Derated Power (°C)	70 to 125
Circuit Designator	ISOL
Case Style	Molded
Terminal Form	Gull Wing
Number of Terminals	16
Terminal Pitch (mm)	1.27
Packing Method	Tape and Reel
Package Type	SOL
Package Shape	Rectangular
Case Code - in	SOL
Length (mm)	10.41
Depth (mm)	10.34
Height (mm)	2.65
Seated Plane Height (mm)	2.78
