4116R-1-202LF

SKU: 86358

Manufacturer: Bourns

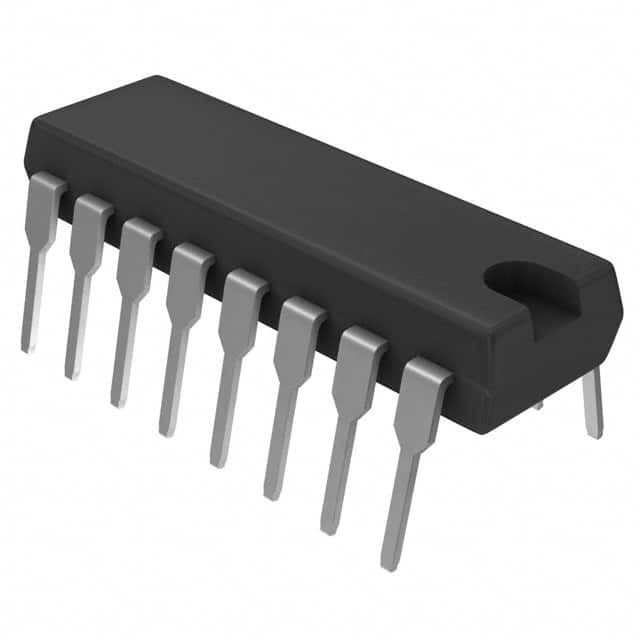

Res Thick Film NET 2K Ohm 2% 2.25W ±100ppm/°C ISOL Molded 16-Pin DIP Pin Thru-Hole

1320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.30
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Network
Number of Resistors	8
Resistance Value (Ohm)	2K
Tolerance	2%
Voltage Rating-Max (V)	100
Power Rating (W)	2.25
Power Rating per Resistor (W)	0.25 (1/4)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±100
Temperature Range @ Derated Power (°C)	70 to 125
Circuit Designator	ISOL
Case Style	Molded
Terminal Form	Pin
Number of Terminals	16
Terminal Pitch (mm)	2.54
Package Type	DIP
Package Shape	Rectangular
Case Code - in	DIP
Length (mm)	21.97
Depth (mm)	7.87
Height (mm)	4.57
Seated Plane Height (mm)	4.57
