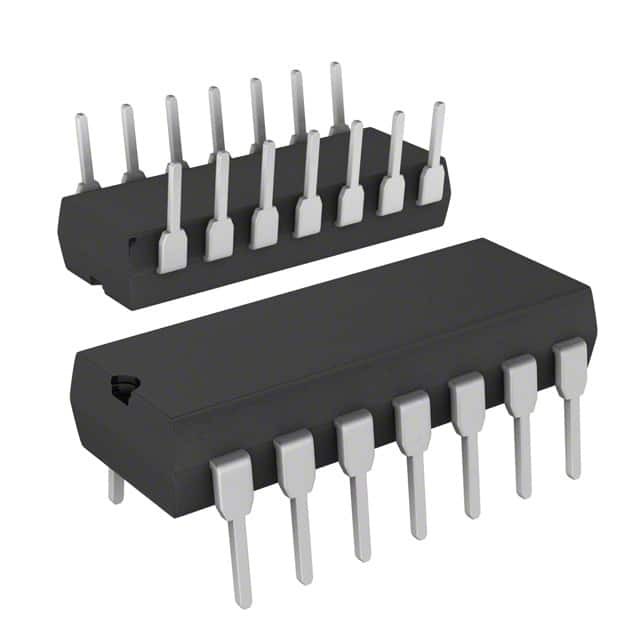

4114R-2-471LF

SKU: 137573

Manufacturer: Bourns

Res Thick Film NET 470 Ohm 2% 2W ±100ppm/°C BUS Molded 14-Pin DIP Pin Thru-Hole

1260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.60
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Network
Number of Resistors	13
Resistance Value (Ohm)	470
Tolerance	2%
Voltage Rating-Max (V)	100
Power Rating (W)	2
Power Rating per Resistor (W)	0.125 (1/8)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±100
Temperature Range @ Derated Power (°C)	70 to 125
Circuit Designator	BUS
Case Style	Molded
Terminal Form	Pin
Number of Terminals	14
Terminal Pitch (mm)	2.54
Package Type	DIP
Package Shape	Rectangular
Case Code - in	DIP
Length (mm)	19.43
Depth (mm)	7.87
Height (mm)	4.57
Seated Plane Height (mm)	4.57
