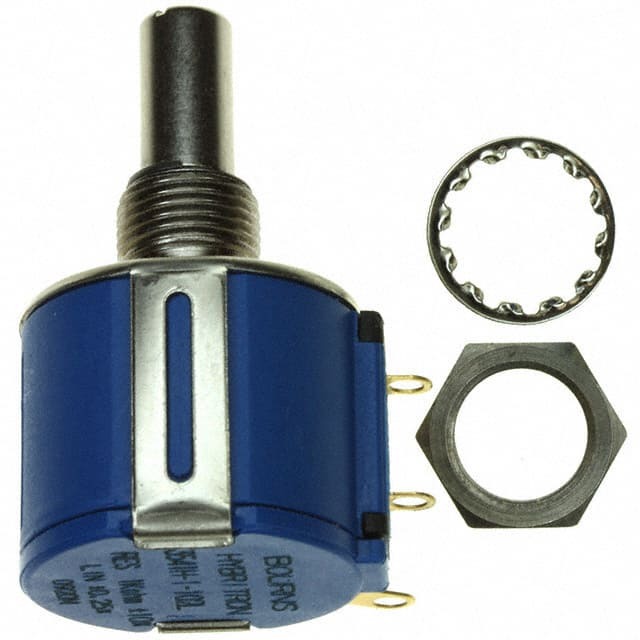

3541H-1-102L

SKU: 135954

Manufacturer: Bourns

Res Hybritron POT 1K Ohm 10% 2W 10(Elec)/10(Mech)Turn 6.34mm (22.23 X 39.67 X 26.99mm) Solder Lug Panel Mount

4170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Potentiometer
Resistance Value (Ohm)	1K
Tolerance	10%
Power Rating (W)	2
Technology	Hybritron
Operating Temperature-Min	-40
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±100
Linear or Logarithmic	Lin
Terminal Form	Solder Lug
Positions of Adjustment	Side
Shaft Diameter (mm)	6.34
Number of Turns (Turns)	10(Elec)
Number of Elements	1
Electrical Rotation (°)	3600
Number of Electrical Turns (Turns)	10
Mechanical Rotation (°)	3600
Mechanical Rotational Life (Cycles)	5000000
Number of Mechanical Turns (Turns)	10
Product Diameter (mm)	22.23
Length (mm)	39.67
Height (mm)	26.99
Product Weight (g)	21
