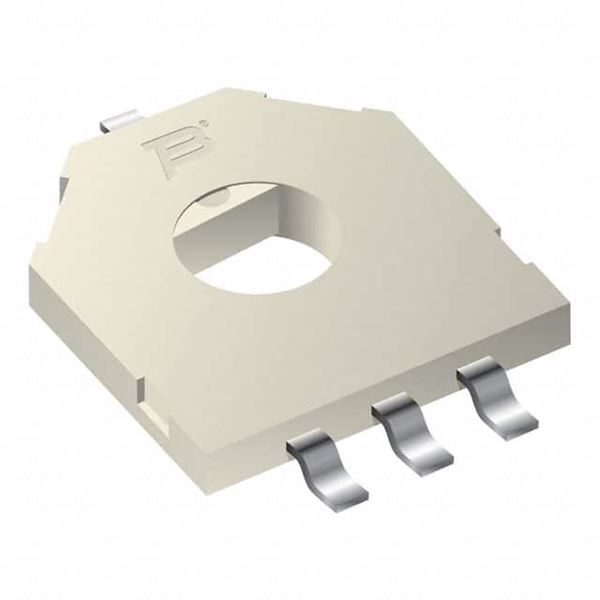

3382G-1-103G

SKU: 116226

Manufacturer: Bourns

Rotary Position Sensor 16V 1MCycles Analog Output Automotive 3-Pin SMD T/R

340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.50
Automotive	Yes
PPAP	Unknown
Type	Rotary
Operating Life (Cycles)	1M
Dielectric Strength	500VAC
Mechanical Travel	360°
Shock Rating (g)	20
Maximum Operating Torque (N.m)	0.003
Resolution	Infinite
Shaft Diameter (mm)	4
Topology	v(1,1)
Output Type	Analog
Operating Supply Voltage-Max (V)	16
Resistance (kOhm)	10
Resistance Tolerance (%)	±30
Power Rating (W)	0.05@50°C
Operating Temperature-Min	-40
Operating Temperature-Max	120
Temperature Coefficient (ppm/°C)	±500
Linearity	Yes
Linearity Error (%)	±2
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	3
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	3.23
Package Length	11
Package Width	12.04
