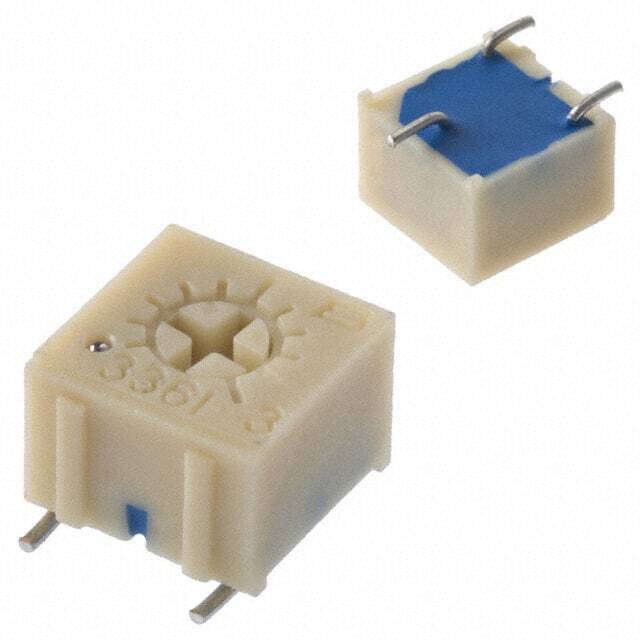

3361P-1-200GLF

SKU: 151740

Manufacturer: Bourns

Res Cermet Trimmer 20 Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turns 2.77mm (6.71 X 8.53 X 5.21mm) Gull Wing SMD T/R

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Trimmer
Resistance Value (Ohm)	20
Tolerance	10%
Voltage Rating-Max (V)	300
Power Rating (W)	0.5 (1/2)
Technology	Cermet
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±100
Linear or Logarithmic	Lin
Terminal Form	Gull Wing
Positions of Adjustment	Top
Shaft Diameter (mm)	2.77
Number of Turns (Turns)	1(Elec)
Number of Elements	1
Electrical Rotation (°)	240
Number of Electrical Turns (Turns)	1
Mechanical Rotation (°)	270
Mechanical Rotational Life (Cycles)	200
Number of Mechanical Turns (Turns)	1
Packing Method	Tape and Reel
Product Shape	Square
Length (mm)	6.71
Depth (mm)	8.53
Height (mm)	5.21
Product Weight (g)	0.567
Length Tolerance (mm)	±0.25
Depth Tolerance (mm)	±0.76
Height Tolerance (mm)	±0.63
