3314J-1-100E

SKU: 51150

Manufacturer: Bourns

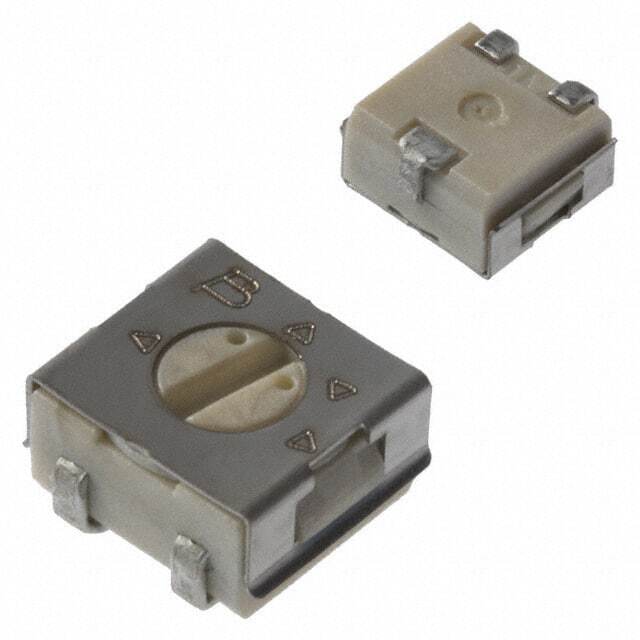

Res Cermet Trimmer 10 Ohm 20% 0.25W(1/4W) 1(Elec)/1(Mech)Turns 2.45mm (5 X 5 X 2.55mm) J-Hook SMD T/R

1780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.50
Automotive	No
PPAP	No
Type	Trimmer
Resistance Value (Ohm)	10
Tolerance	20%
Voltage Rating-Max (V)	300
Power Rating (W)	0.25 (1/4)
Technology	Cermet
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±100
Linear or Logarithmic	Lin
Terminal Form	J-Hook
Positions of Adjustment	Top
Shaft Diameter (mm)	2.45
Number of Turns (Turns)	1(Elec)
Number of Elements	1
Electrical Rotation (°)	210
Number of Electrical Turns (Turns)	1
Mechanical Rotation (°)	240
Mechanical Rotational Life (Cycles)	100
Number of Mechanical Turns (Turns)	1
Packing Method	Tape and Reel
Length (mm)	5
Depth (mm)	5
Height (mm)	2.55
Product Weight (g)	0.283
