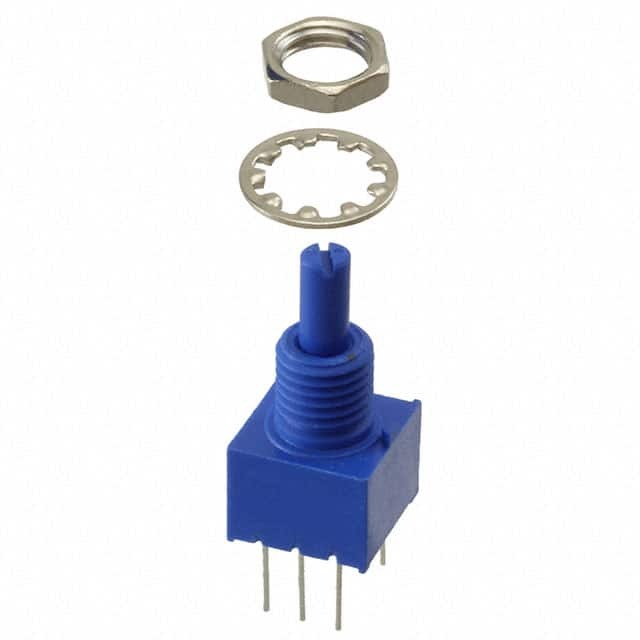

3310H-001-102L

SKU: 22713

Manufacturer: Bourns

Res Conductive Plastic POT 1K Ohm 20% 0.25W(1/4W) 1(Elec)/1(Mech)Turn 3.18mm (9.53 X 9.75 X 20.24mm) Pin Panel Mount/Through Hole

2070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	No
PPAP	No
Type	Potentiometer
Resistance Value (Ohm)	1K
Tolerance	20%
Voltage Rating-Max (V)	200
Power Rating (W)	0.25 (1/4)
Technology	Conductive Plastic
Operating Temperature-Min	-40
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±1000
Linear or Logarithmic	Lin
Terminal Form	Pin
Positions of Adjustment	Top
Shaft Diameter (mm)	3.18
Number of Turns (Turns)	1(Mech)
Number of Elements	2
Electrical Rotation (°)	270
Number of Electrical Turns (Turns)	1
Mechanical Rotation (°)	300
Mechanical Rotational Life (Cycles)	50000
Number of Mechanical Turns (Turns)	1
Length (mm)	9.53
Depth (mm)	9.75
Height (mm)	20.24
Product Weight (g)	7
