3306W-1-202

SKU: 79230

Manufacturer: Bourns

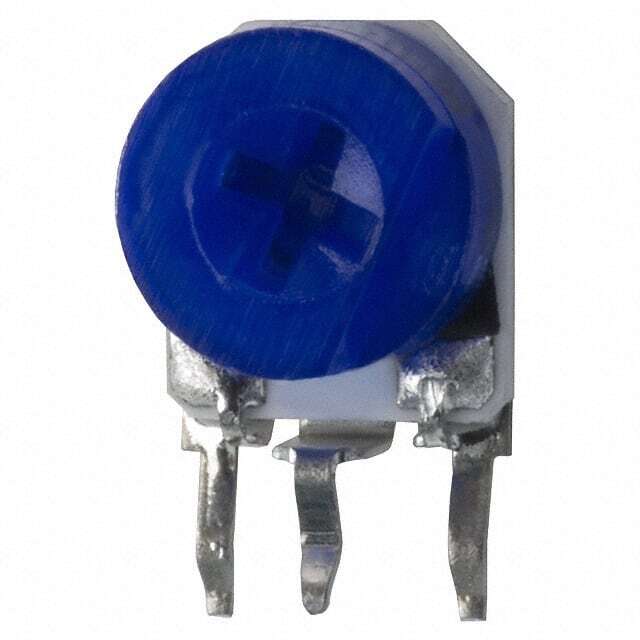

Res Cermet Trimmer 2K Ohm 25% 0.2W(1/5W) 1(Elec)/1(Mech)Turns 3.4mm (6.81 X 8.4mm) Pin Thru-Hole Bag

4210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	No
PPAP	No
Type	Trimmer
Resistance Value (Ohm)	2K
Tolerance	25%
Voltage Rating-Max (V)	100
Power Rating (W)	0.2 (1/5)
Technology	Cermet
Operating Temperature-Min	-25
Operating Temperature-Max	100
Temperature Coefficient (ppm/°C)	±250
Linear or Logarithmic	Lin
Terminal Form	Pin
Positions of Adjustment	Side
Shaft Diameter (mm)	3.4
Number of Turns (Turns)	1(Mech)
Number of Elements	1
Electrical Rotation (°)	215
Number of Electrical Turns (Turns)	1
Mechanical Rotation (°)	260
Number of Mechanical Turns (Turns)	1
Packing Method	Bag
Length (mm)	6.81
Height (mm)	8.4
