3303W-3-104E

SKU: 144594

Manufacturer: Bourns

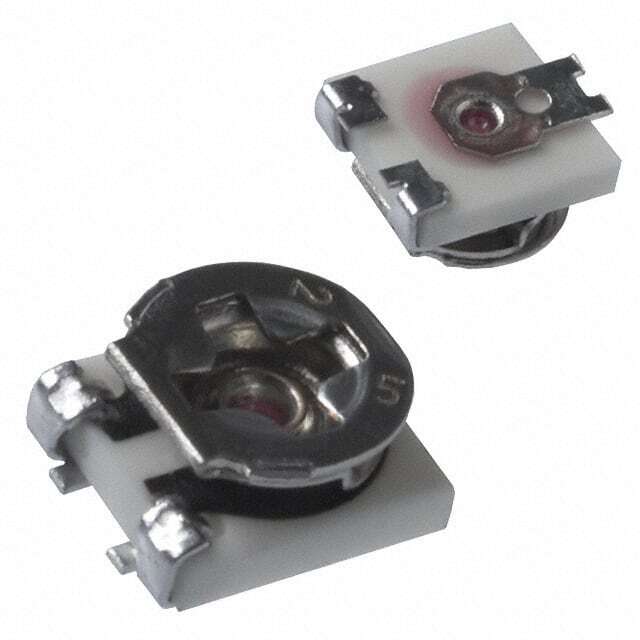

Res Trimmer 100K Ohm 25% 0.15W 1(Elec)/1(Mech)Turns (3 X 3.75 X 1.55mm) Foot Print SMD T/R

3010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8533.40.80.50
SVHC	Yes
Automotive	No
PPAP	No
Type	Trimmer
Resistance Value (Ohm)	100K
Tolerance	25%
Voltage Rating-Max (V)	50
Power Rating (W)	0.15
Operating Temperature-Min	-40
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±250
Linear or Logarithmic	Lin
Terminal Form	Footprint
Positions of Adjustment	Top
Number of Turns (Turns)	1(Elec)
Number of Elements	1
Electrical Rotation (°)	260
Number of Electrical Turns (Turns)	1
Mechanical Rotational Life (Cycles)	20
Number of Mechanical Turns (Turns)	1
Packing Method	Tape and Reel
Length (mm)	3
Depth (mm)	3.75
Height (mm)	1.55
