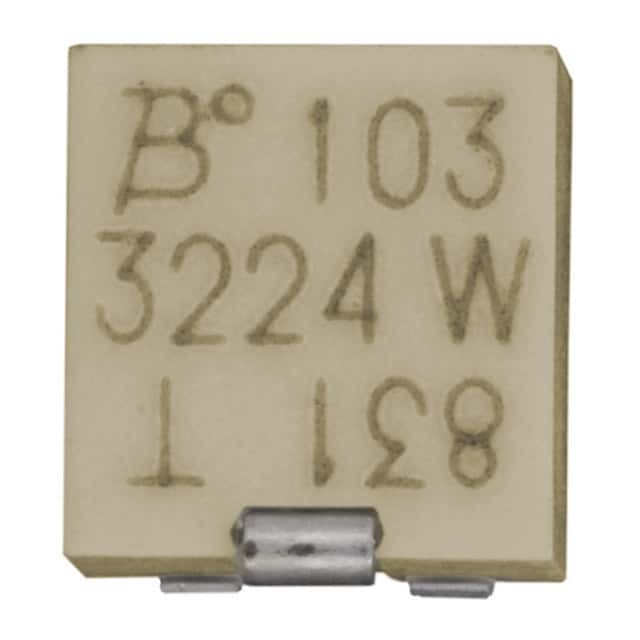

3224W-1-204E

SKU: 73777

Manufacturer: Bourns

Res Cermet Trimmer 200K Ohm 10% 0.25W(1/4W) 12(Elec)Turns 1.5mm (4.8 X 3.9 X 5.3mm) J-Hook SMD T/R

6750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Trimmer
Resistance Value (Ohm)	200K
Tolerance	10%
Voltage Rating-Max (V)	300
Power Rating (W)	0.25 (1/4)
Technology	Cermet
Operating Temperature-Min	-65
Operating Temperature-Max	150
Temperature Coefficient (ppm/°C)	±100
Linear or Logarithmic	Lin
Terminal Form	J-Hook
Positions of Adjustment	Top
Shaft Diameter (mm)	1.5
Number of Turns (Turns)	12(Elec)
Number of Elements	1
Electrical Rotation (°)	4320
Number of Electrical Turns (Turns)	12
Mechanical Rotational Life (Cycles)	200
Packing Method	Tape and Reel
Length (mm)	4.8
Depth (mm)	3.9
Height (mm)	5.3
Product Weight (g)	0.283
