3006P-1-100LF

SKU: 80773

Manufacturer: Bourns

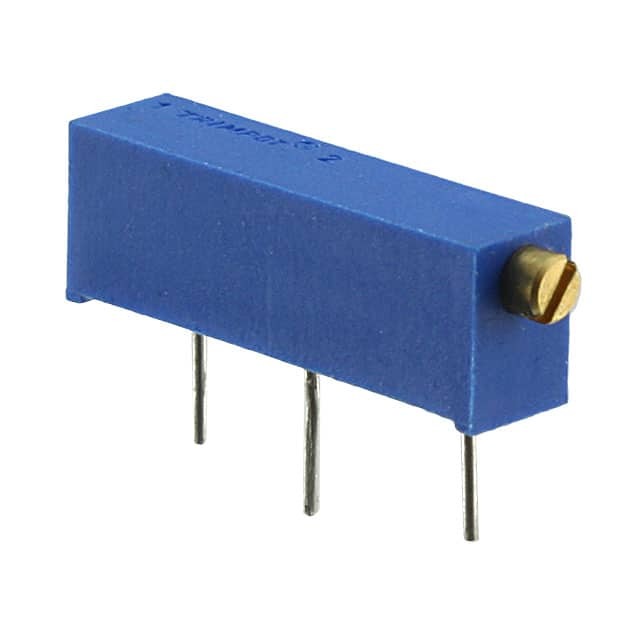

Res Cermet Trimmer 10 Ohm 10% 0.75W(3/4W) 15(Elec)Turn 2.36mm (20.57 X 4.83 X 6.35mm) Pin Thru-Hole Tube

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Trimmer
Resistance Value (Ohm)	10
Tolerance	10%
Voltage Rating-Max (V)	400
Power Rating (W)	0.75 (3/4)
Technology	Cermet
Operating Temperature-Min	-55
Operating Temperature-Max	125
Temperature Coefficient (ppm/°C)	±100
Linear or Logarithmic	Lin
Terminal Form	Pin
Positions of Adjustment	Side
Shaft Diameter (mm)	2.36
Number of Turns (Turns)	15(Elec)
Number of Elements	1
Electrical Rotation (°)	5400
Mechanical Rotational Life (Cycles)	200
Packing Method	Tube
Length (mm)	20.57
Depth (mm)	4.83
Height (mm)	6.35
Product Weight (g)	1.13
