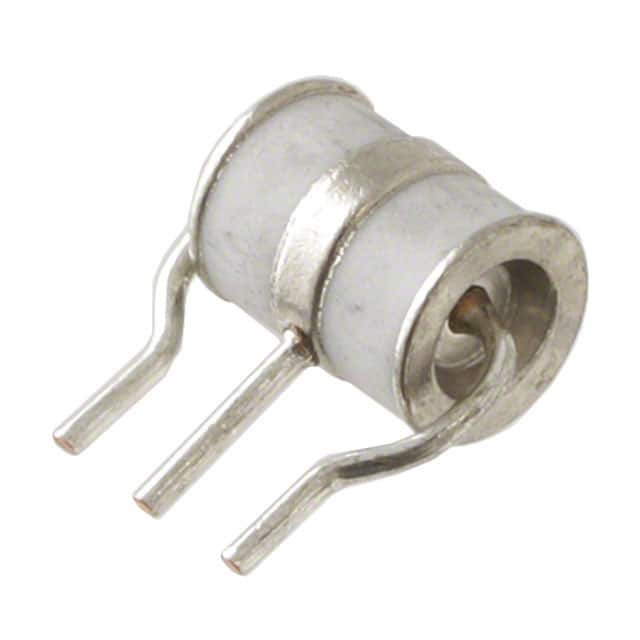

2046-35-C2LF

SKU: 29786

Manufacturer: Bourns

Gas Discharge Tubes 350VDC 10kADC 2pF Radial Thru-Hole

2330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
DC Sparkover Voltage Tolerance	±20%
Maximum Impulse Sparkover Voltage @ 100V/s (V)	700
Maximum DC Holdover Voltage (V)	150@150ms
Maximum Impulse Sparkover Voltage @ 1KV/s (V)	800
Typical DC Sparkover Voltage @ 100V/s (V)	350
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	10
Minimum Insulation Resistance @ 100V (GOhm)	10
Maximum Capacitance @ 1MHz (pF)	2
Typical Impulse Life @ 10/1000us (Times)	130
Number of Electrodes	3
Terminal Form	Radial
Terminal Pitch (mm)	4.4
Number of Terminals	3
Operating Temperature-Min	-30
Operating Temperature-Max	85
Lead Diameter (mm)	1
Length (mm)	13.4
Product Diameter (mm)	8
Failsafe Protection	No
Wire Form	Shaped
