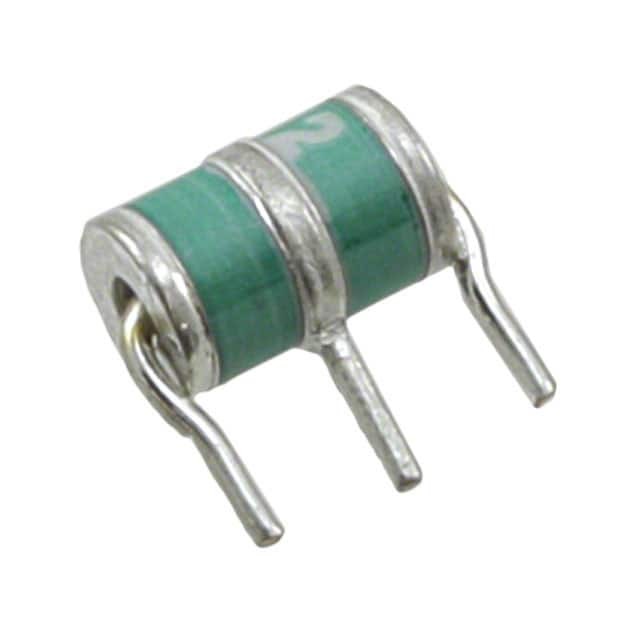

2036-35-B2LF

SKU: 128782

Manufacturer: Bourns

Gas Discharge Tubes 350VDC 10kADC 10AAC 2pF Radial Thru-Hole

4530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
DC Sparkover Voltage Tolerance	±25%
Maximum Impulse Sparkover Voltage @ 100V/s (V)	600
Maximum DC Holdover Voltage (V)	135@150ms
Maximum Impulse Sparkover Voltage @ 1KV/s (V)	750
Typical DC Sparkover Voltage @ 100V/s (V)	350
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	10
Typical AC Discharge Current @ 1s @ <= 10Times (A)	10
Minimum Insulation Resistance @ 100V (GOhm)	10
Maximum Capacitance @ 1MHz (pF)	2
Typical Impulse Life @ 10/1000us (Times)	300
Number of Electrodes	3
Terminal Form	Radial
Number of Terminals	3
Operating Temperature-Min	-55
Packing Method	Tray
Operating Temperature-Max	105
Lead Diameter (mm)	0.8
Length (mm)	9.6
Depth (mm)	5.1
Height (mm)	5.1
Failsafe Protection	No
Wire Form	Straight
