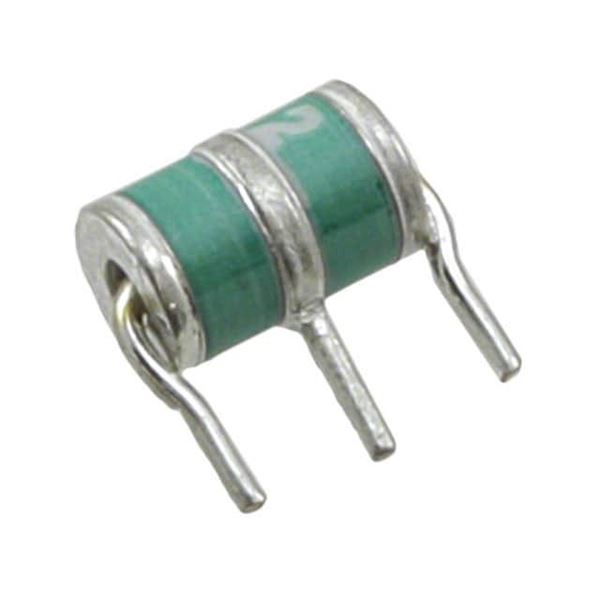

2036-15-BLF

SKU: 22675

Manufacturer: Bourns

Gas Discharge Tubes 150VDC 10kADC 10AAC 2pF T Lead Thru-Hole

2830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
DC Sparkover Voltage Tolerance	±25%
Maximum Impulse Sparkover Voltage @ 100V/s (V)	350
Maximum DC Holdover Voltage (V)	80@150ms
Maximum Impulse Sparkover Voltage @ 1KV/s (V)	500
Typical DC Sparkover Voltage @ 100V/s (V)	150
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	10
Typical AC Discharge Current @ 1s @ <= 10Times (A)	10
Minimum Insulation Resistance @ 100V (GOhm)	10
Maximum Capacitance @ 1MHz (pF)	2
Typical Impulse Life @ 10/1000us (Times)	300
Number of Electrodes	3
Terminal Form	T Lead
Number of Terminals	3
Operating Temperature-Min	-55
Packing Method	Bag
Operating Temperature-Max	105
Lead Diameter (mm)	0.8
Length (mm)	7.5
Depth (mm)	5.1
Height (mm)	5.1
Failsafe Protection	No
Wire Form	Straight
