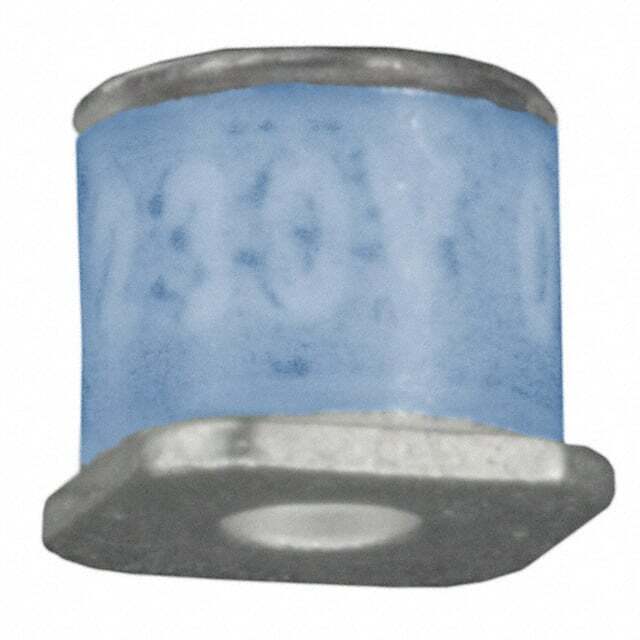

2035-47-SM-RPLF

SKU: 100464

Manufacturer: Bourns

Gas Discharge Tubes 470VDC 5kADC 5AAC 1pF Solder Pad SMD Automotive

1140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	Unknown
PPAP	Unknown
DC Sparkover Voltage Tolerance	±15%
Maximum Impulse Sparkover Voltage @ 100V/s (V)	750
Maximum DC Holdover Voltage (V)	135@150ms
Maximum Impulse Sparkover Voltage @ 1KV/s (V)	950
Typical DC Sparkover Voltage @ 100V/s (V)	470
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	5
Typical AC Discharge Current @ 1s @ <= 10Times (A)	5
Minimum Insulation Resistance @ 100V (GOhm)	10
Maximum Capacitance @ 1MHz (pF)	1
Typical Impulse Life @ 10/1000us (Times)	300
Number of Electrodes	2
Terminal Form	Solder Pad
Terminal Pitch (mm)	3.9
Number of Terminals	2
Operating Temperature-Min	-55
Packing Method	Tape and Reel
Operating Temperature-Max	85
Length (mm)	4.4
Failsafe Protection	No
