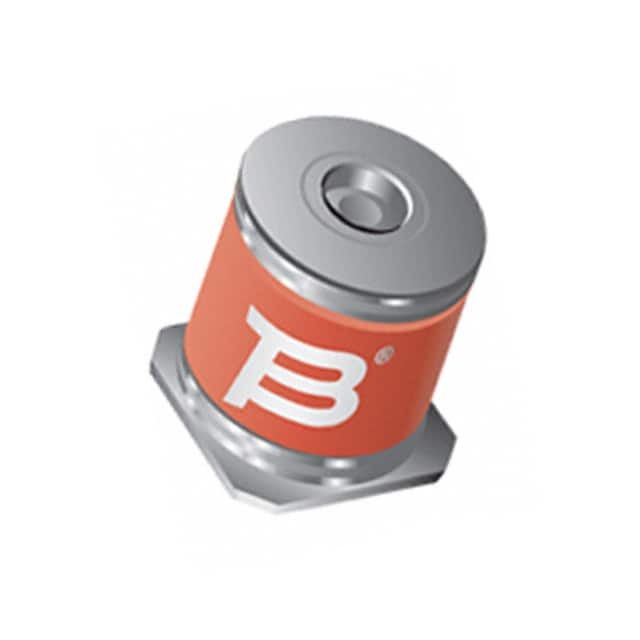

2031-42T-SM-RPLF

SKU: 6943

Manufacturer: Bourns

Gas Discharge Tubes 420VDC 1pF Solder Pad SMD

2150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Maximum DC Holdover Voltage (V)	135@150ms
Typical DC Sparkover Voltage @ 100V/s (V)	420
Minimum Insulation Resistance @ 100V (GOhm)	1
Maximum Capacitance @ 1MHz (pF)	1
Typical Impulse Life @ 10/1000us (Times)	50
Number of Electrodes	2
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Packing Method	Tape and Reel
Operating Temperature-Max	90
Length (mm)	4.4
Depth (mm)	5
Height (mm)	5
Failsafe Protection	No
