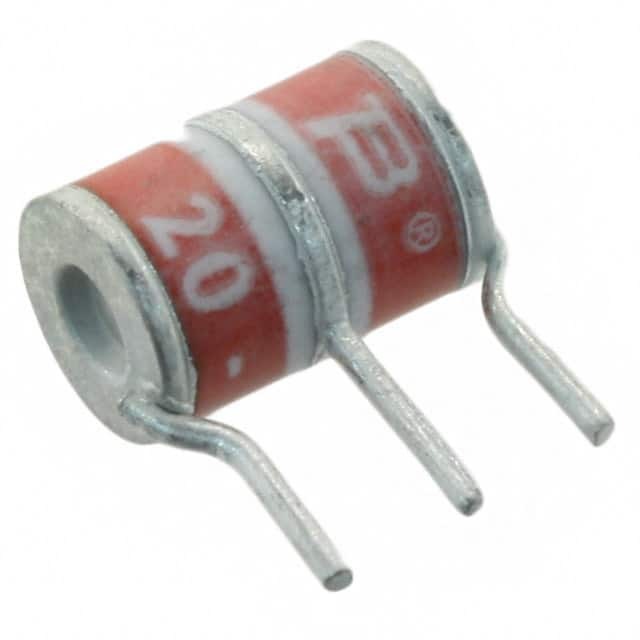

2020-23T-C2LF

SKU: 100463

Manufacturer: Bourns

Gas Discharge Tubes 230VDC 20kADC 10AAC 2pF Radial Thru-Hole

1730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Maximum DC Holdover Voltage (V)	80@150ms
Typical DC Sparkover Voltage @ 100V/s (V)	230
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	20
Typical AC Discharge Current @ 1s @ <= 10Times (A)	10
Minimum Insulation Resistance @ 100V (GOhm)	1
Maximum Capacitance @ 1MHz (pF)	2
Typical Impulse Life @ 10/1000us (Times)	100
Number of Electrodes	3
Terminal Form	Radial
Terminal Pitch (mm)	4.4
Number of Terminals	3
Operating Temperature-Min	-40
Packing Method	Bulk
Operating Temperature-Max	90
Lead Diameter (mm)	1
Length (mm)	13
Depth (mm)	7.9
Height (mm)	10.9
Product Diameter (mm)	7.9
Failsafe Protection	No
Wire Form	Shaped
