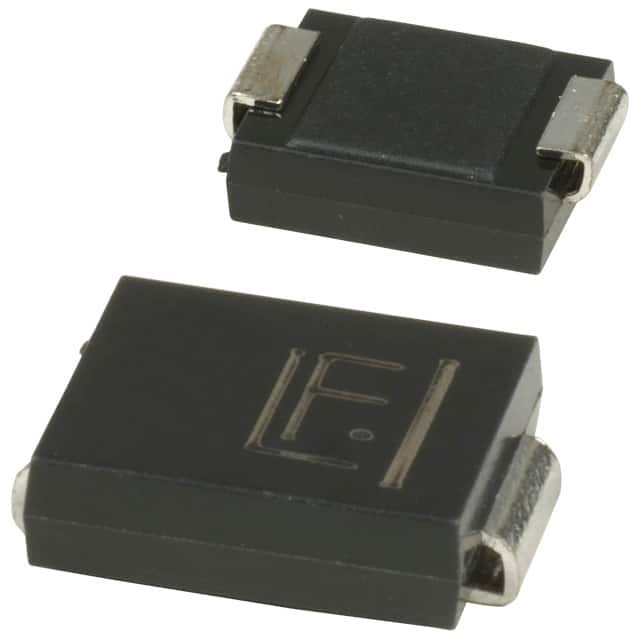

1.5SMC100CA

SKU: 7608

Manufacturer: Bourns

TVS Diode Single Bi-Dir 85.5V 1.5KW 2-Pin SMC T/R

1500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	95
Maximum Clamping Voltage (V)	137
Maximum Reverse Stand-Off Voltage (V)	85.5
Maximum Peak Pulse Current (A)	11.1
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SMC
Pin Count	2
Standard Package Method	DO-214-AB
Terminal Form	Surface Mount
Package Height	2.42(Max)
Package Length	7.11(Max)
Package Width	6.22(Max)
PCB changed	2
