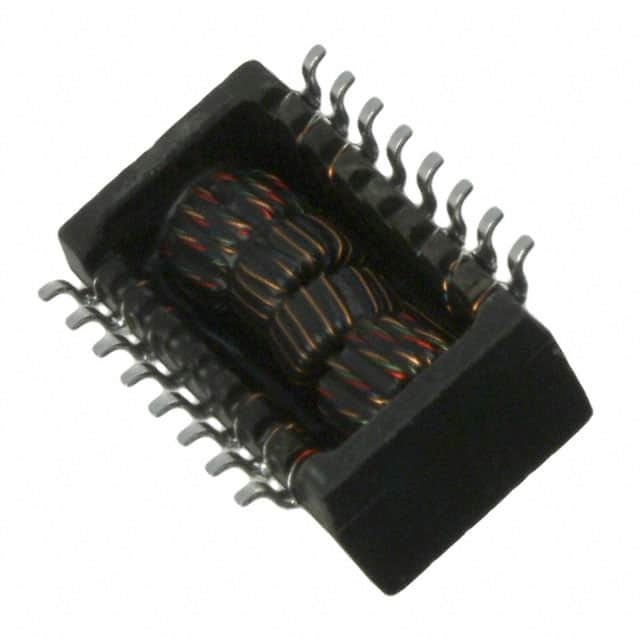

S558-5999-T7-F Bel Magnetic Solutions

S558-5999-T7-F

SKU: 108595

Manufacturer: Bel Magnetic Solutions

Telecom Transformer 2(1CT:1CT) 16 Terminal Gull Wing SMD

Download sample

Request Free Samples

2350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.31.40.65
Automotive	No
PPAP	No
Transformer Type	10/100Base-T LAN Transformer
High Potential	1500Vrms
Minimum Crosstalk (dB)	-35@100MHz
Minimum CMRR (dB)	-30@0.1MHz to 100MHz
Minimum Return Loss (dB)	-12@60MHz to 80MHz
Maximum Insertion Loss (dB)	-1@0.1MHz to 100MHz
Lead Style	Gull Wing
Terminal Form	Surface Mount
Number of Terminals	16
Operating Temperature-Min	-40
Operating Temperature-Max	85
Length (mm)	12.7
Depth (mm)	9.53
