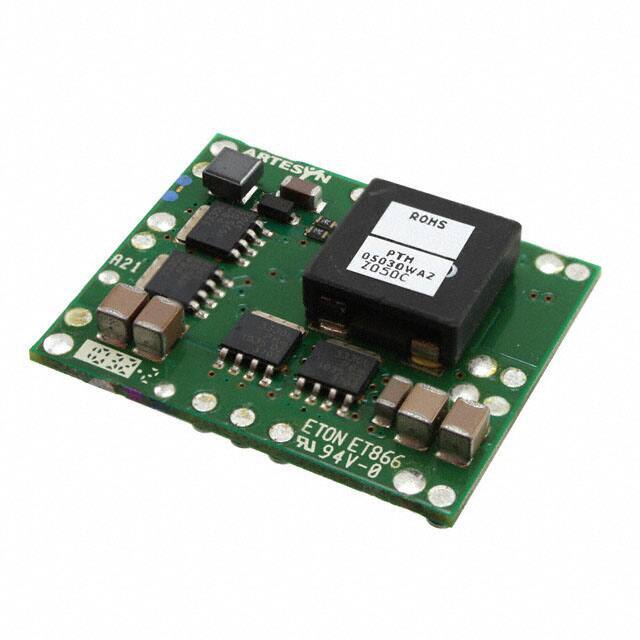

    PTH05030WAZ

    SKU: 35234
    Manufacturer: Artesyn Embedded Technologies
    Module DC-DC 5VIN 1-OUT 0.8V to 3.6V 30A 108W 13-Pin Tray
    Download sample
    Request Free Samples
    1260 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    HTS 8504.40.95.80
    Automotive Unknown
    PPAP Unknown
    Type Step Down
    Isolation Non-Isolated
    Number of Outputs 1
    Minimum Input Voltage (V) 4.5
    Typical Input Voltage (V) 5
    Maximum Input Voltage (V) 5.5
    Output Voltage (V) 0.8 to 3.6
    Output Current (A) 30
    Output Power (W) 108
    Input/Output Type DC/DC
    Switching Frequency (kHz) 325
    Switching Regulator Yes
    Load Regulation 12mV(Typ)
    Line Regulation 10mV(Typ)
    Efficiency (%) 94(Typ)
    On/Off Logic Positive
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Product Weight (g) 10
    Output Type Adjustable
    Pin Count 13
    Terminal Form Surface Mount
    Package Length 34.8
    Package Width 28.45
