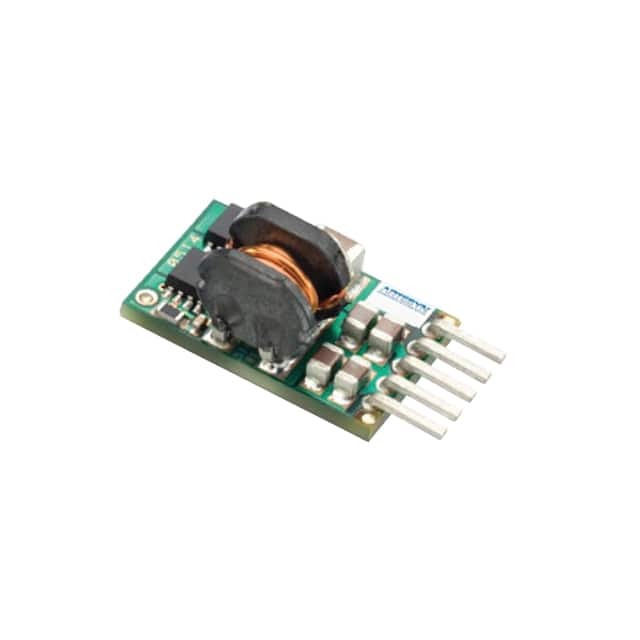

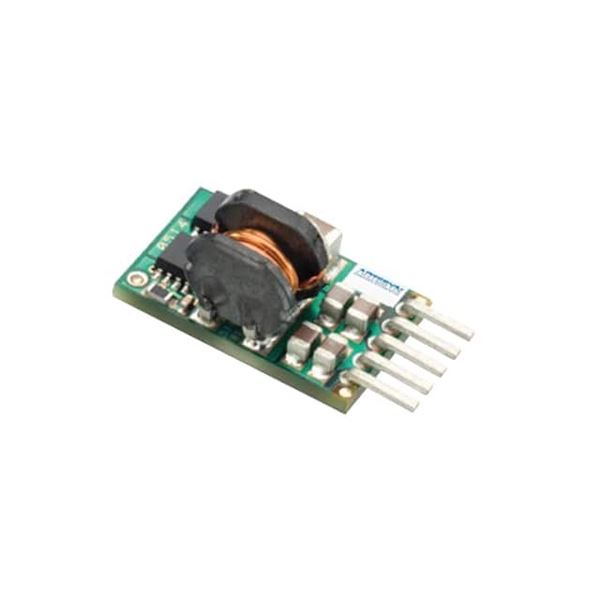

LDO10C-005W05-VJ Artesyn Embedded Technologies

LDO10C-005W05-VJ

SKU: 26260

Manufacturer: Artesyn Embedded Technologies

Module DC-DC 1-OUT 0.59V to 5.1V 10A 50W 5-Pin

Download sample

Request Free Samples

3520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
HTS	8504.40.95.20
Automotive	Unknown
PPAP	Unknown
Type	Step Up
Isolation	Non-Isolated
Number of Outputs	1
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	13.8
Output Voltage (V)	0.59 to 5.1
Output Current (A)	10
Output Power (W)	50
Input/Output Type	DC/DC
Switching Frequency (kHz)	620
Switching Regulator	Yes
Load Regulation	0.5%
Line Regulation	0.2%
Efficiency (%)	94(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	1.899
Output Type	Adjustable
Pin Count	5
Terminal Form	Through Hole
Package Height	16.51
Package Length	10.41
Package Width	11.68(Max)
