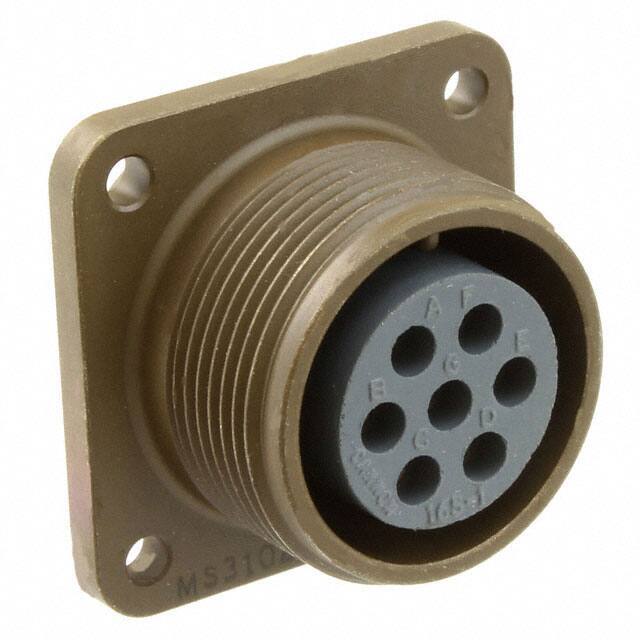

MS3102R16S-1S

SKU: 101432

Manufacturer: Array Connector Corporation

Conn Circular SKT 7 POS Solder ST Box Mount 7 Terminal 1 Port Automotive

3390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	Unknown
PPAP	Unknown
Military Standard	MIL-C-5015
Type	Circular
Gender	RCP
Terminal Form	Box Mount
Body Orientation	Straight
Polarization	N
Number of Ports	1
Number of Contacts	7
Number of Terminals	7
Contact Gender	SKT
Termination Method	Solder
Shell Size / Insert Arrangement	16S-1
Wire Size (AWG)	16
Less Contact	No
Contact Body Material	Copper Alloy
Contact Plating	Silver
Shell Body Material	Aluminum
Shell Plating	Chromate Over Cadmium
Housing Color	Olive Drab
Current Rating-Max(A)	22
Voltage Rating-Max	700VDC
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Style	Threaded
Length (mm)	28.05
Depth (mm)	32.5
