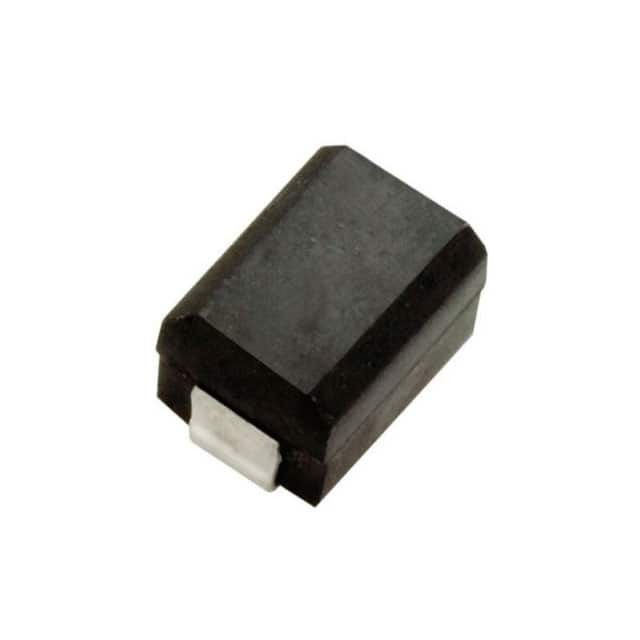

S1812R-223K

SKU: 56764

Manufacturer: API Delevan

Inductor RF Shielded Wirewound 22uH 10% 2.5MHz 50Q-Factor Ferrite 0.277A 2.6Ohm DCR 1812 T/R

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	RF
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	22u
Tolerance	10%
Inductance Test Frequency (Hz)	2.5M
Maximum DC Current (A)	0.277
Maximum DC Resistance (Ohm)	2.6
Minimum Quality Factor	50
Quality Test Frequency (Hz)	2.5M
Minimum Self Resonant Frequency (Hz)	14M
Number of Terminals	2
Case Size	1812
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	4.8
Terminal Form	Surface Mount
Depth (mm)	3.4
