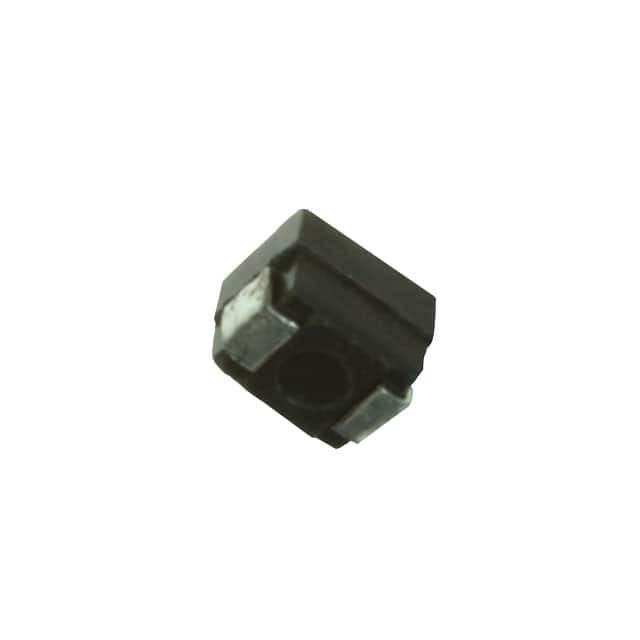

S1210R-561K

SKU: 30916

Manufacturer: API Delevan

Inductor RF Shielded Wirewound 0.56uH 10% 25MHz 40Q-Factor Iron 0.619A 0.5Ohm DCR 1210 T/R

2510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	RF
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Iron
Inductance (H)	0.56u
Tolerance	10%
Inductance Test Frequency (Hz)	25M
Maximum DC Current (A)	0.619
Maximum DC Resistance (Ohm)	0.5
Minimum Quality Factor	40
Quality Test Frequency (Hz)	25M
Minimum Self Resonant Frequency (Hz)	200M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	3.51
Terminal Form	Surface Mount
Depth (mm)	2.66
