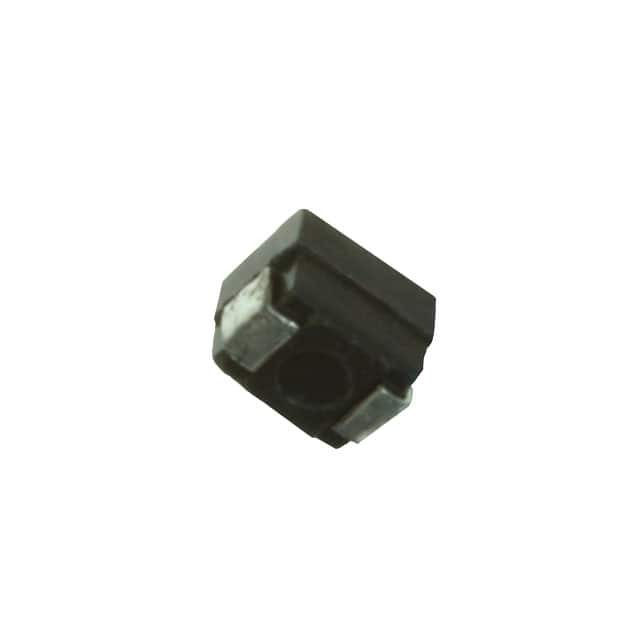

S1210-392K

SKU: 80352

Manufacturer: API Delevan

Inductor RF Shielded Wirewound 3.9uH 10% 7.9MHz 40Q-Factor Ferrite 0.441A 0.83Ohm DCR 1210 T/R

2950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	RF
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	3.9u
Tolerance	10%
Inductance Test Frequency (Hz)	7.9M
Maximum DC Current (A)	0.441
Maximum DC Resistance (Ohm)	0.83
Minimum Quality Factor	40
Quality Test Frequency (Hz)	7.9M
Minimum Self Resonant Frequency (Hz)	42M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	3.51
Terminal Form	Surface Mount
Depth (mm)	2.66
