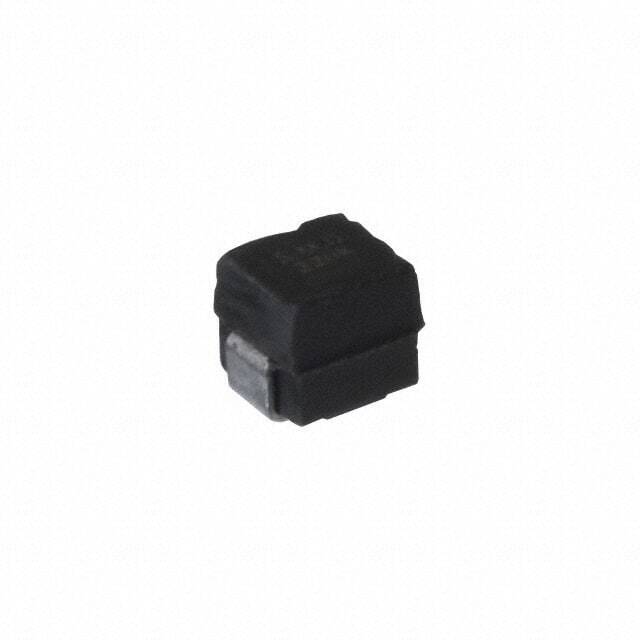

1008R-103J

SKU: 9080

Manufacturer: API Delevan

Inductor RF Unshielded Wirewound 10uH 5% 7.9MHz 30Q-Factor Ferrite 0.245A 2.5Ohm DCR 1008 T/R

3050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	RF
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	10u
Tolerance	5%
Inductance Test Frequency (Hz)	7.9M
Maximum DC Current (A)	0.245
Maximum DC Resistance (Ohm)	2.5
Minimum Quality Factor	30
Quality Test Frequency (Hz)	7.9M
Minimum Self Resonant Frequency (Hz)	28M
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	2.92
Terminal Form	Surface Mount
Depth (mm)	2.66
