IPR3SAD6

SKU: 26056

Manufacturer: APEM, Inc

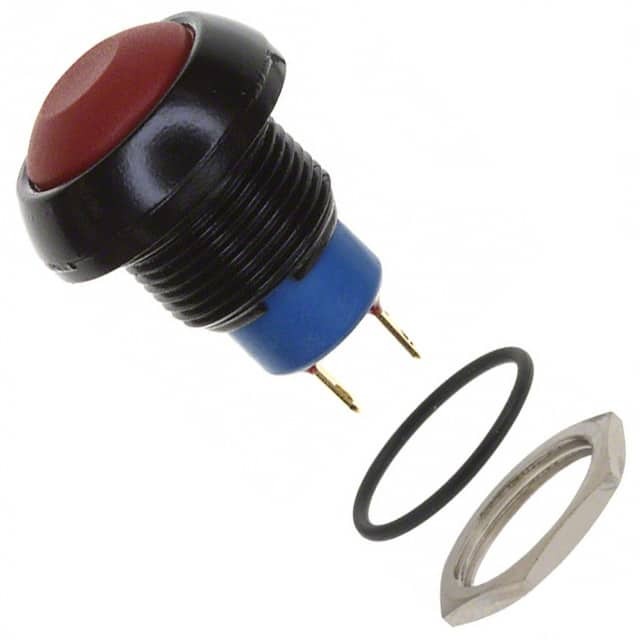

Switch Push Button N.O. SPST Round Plunger 5A 48VAC 48VDC Momentary Contact Panel Mount Solder Lug Automotive

2460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Switch Function	Momentary Contact
Pole Throw Configuration	SPST
Actuator Style	Round Plunger
Switch Configuration	N.O.
Bushing Type	Threaded
Current Rating-Max(A)	5@28VDC
Dielectric Strength	1500Vrms
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	100
Electrical Life (Cycles)	500000
Mechanical Life (Cycles)	1000000
Actuator Color	Red
Actuator Length (mm)	2
Number of Rows	1
Terminal Form	Panel Mount
Terminal Form	Solder Lug
Number of Terminals	2
Terminal Length (mm)	3.2
Terminal Pitch (mm)	5.08
Seal Location	Terminals
Seal Description	Epoxy
IP Rating	IP67
Body Orientation	Straight
Operating Temperature-Min	-40
Operating Temperature-Max	85
Bushing Length (mm)	6.8
Body Height (mm)	6.4
Length (mm)	17.5
Depth (mm)	17.5
