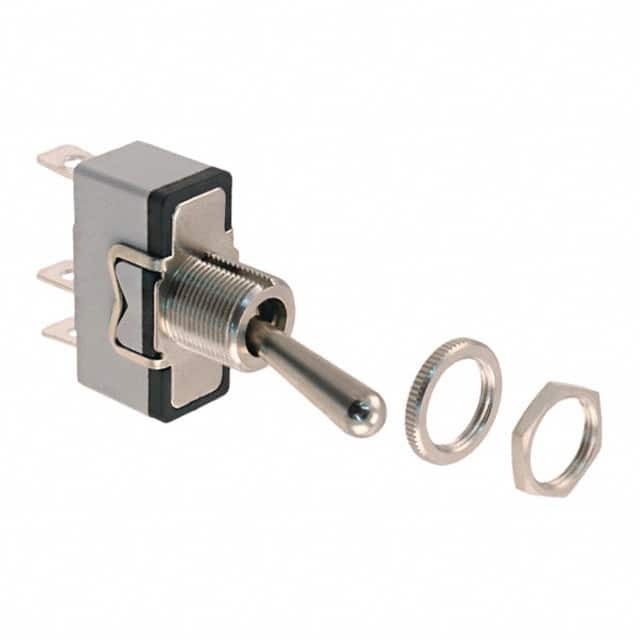

636H/2

SKU: 137639

Manufacturer: APEM, Inc

Switch Toggle ON ON SPDT Round Lever Quick Conn/Solder Lug 15A 400VAC 24VDC 372.85VA Panel Mount with Threads

2280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Power
Actuator Style	Round Lever
Pole Throw Configuration	SPDT
Switch Configuration	ON ON
Bushing Type	Threaded
Current Rating-Max(A)	15@250VAC 12VDC
Maximum Power Rating (VA)	372.85
Dielectric Strength	2000Vrms
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Electrical Life (Cycles)	10000
Actuator Length (mm)	17.5
Number of Rows	1
Terminal Form	Panel Mount with Threads
Terminal Form	Quick Connect/Solder Lug
Number of Terminals	3
Body Orientation	Straight
Operating Temperature-Min	-20
Operating Temperature-Max	55
Thread Size	M12 x 0.75
Body Length (mm)	29.5
Bushing Length (mm)	10.5
Body Depth (mm)	14
Body Height (mm)	15
