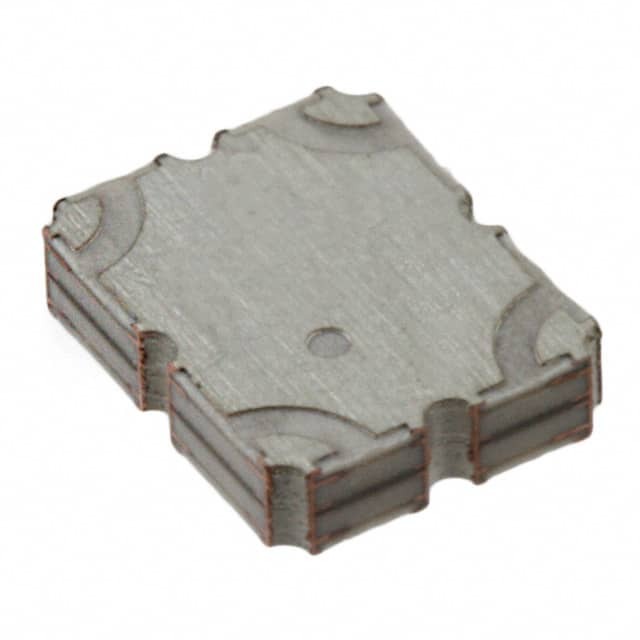

X3C21P1-03S

SKU: 135799

Manufacturer: Anaren, Inc

RF Couplers Quadrature Coupling 3dB 1.8GHz to 2.3GHz 4-Pin SMD T/R

9220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Type	Hybrid
Module/IC Classification	IC
Configuration	Quadrature
Phase Balance (°)	90
Frequency Range (GHz)	1.8 to 2.3
Primary/Secondary Maximum VSWR	1.33/1.33
Maximum Insertion Loss (dB)	0.25
Typical Coupling (dB)	3
Average Incident Power (W)	110
Operating Temperature-Min	-55
Operating Temperature-Max	95
Packing Method	Tape and Reel
Standard Package Method	SMD
Original Package	SMD
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.44
Package Length	6.35
Package Width	5.08
