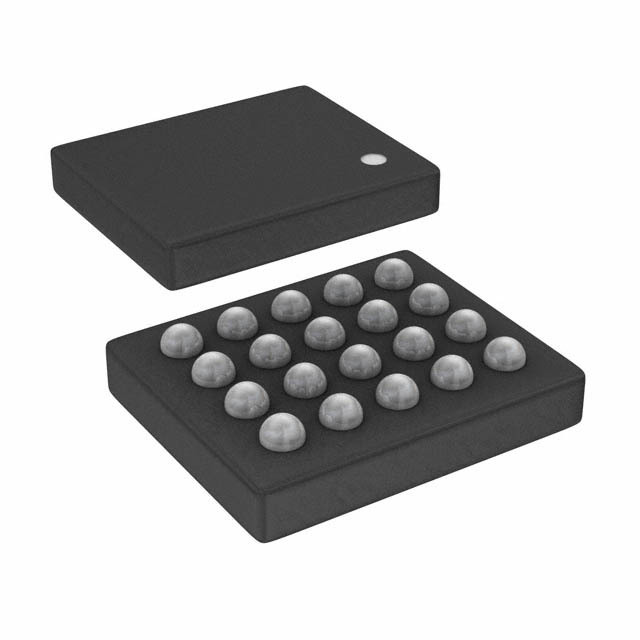

SSM3515CCBZ-RL

SKU: 45281

Manufacturer: Analog Devices

Audio Amp Speaker 1-CH Mono 39.3W Class-D 20-Pin WLCSP T/R

3920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.004%@8Ohm@5W
Output Signal Type	Differential
Output Type	1-Channel Mono
Maximum Input Offset Voltage (mV)	5@12V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	17
Minimum Load Resistance (Ohm)	4
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	39.3x1@4Ohm
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	WLCSP
Pin Count	20
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.3
Package Length	2.2
Package Width	1.8
PCB changed	20
