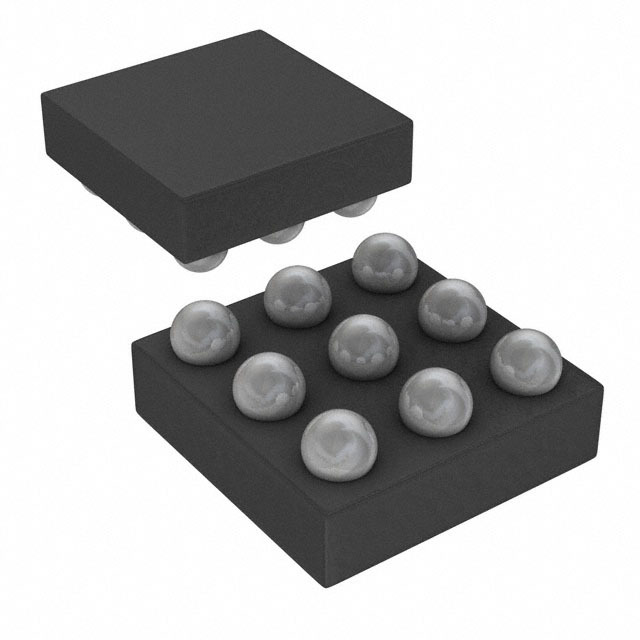

SSM2319CBZ-REEL7

SKU: 16914

Manufacturer: Analog Devices

Audio Amp Speaker 1-CH Mono 3.7W Class-D 9-Pin WLCSP T/R

2700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.33.00.01
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.06%@8Ohm@1W
Output Signal Type	Differential
Output Type	1-Channel Mono
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	3.7x1@3Ohm
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Original Package	WLCSP
Pin Count	9
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.36
Package Length	1.46
Package Width	1.46
PCB changed	9
