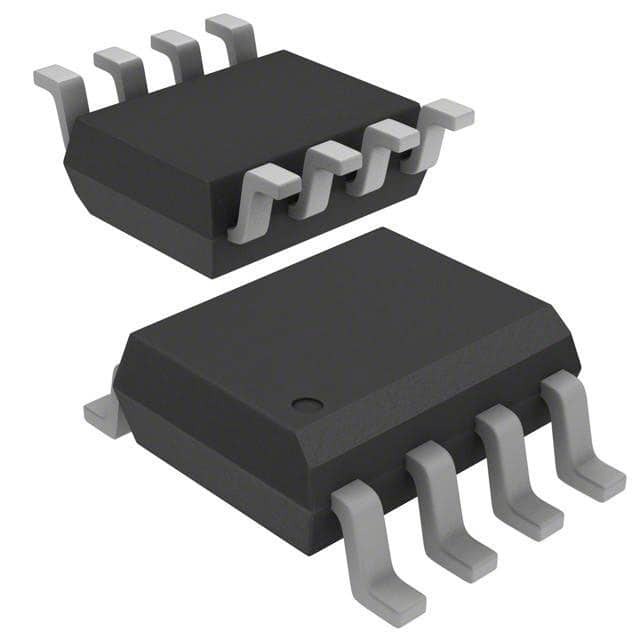

OP727ARZ

SKU: 56391

Manufacturer: Analog Devices

Op Amp Dual Precision Amplifier R-R O/P ±15V/30V 8-Pin SOIC N Tube

790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Process Technology	BiCMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	0.3@5V@-40C to 85C
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	30
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±15
Maximum Input Offset Current (uA)	0.002@5V@-40C to 85C
Maximum Input Bias Current (uA)	0.011@5V@-40C to 85C
Maximum Supply Current (mA)	0.58@5V
Typical Output Current (mA)	10@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.2@5V
Typical Input Noise Voltage Density (nV/rtHz)	15@5V
Typical Voltage Gain (dB)	113.98
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.13@5V
Minimum PSRR (dB)	120
Minimum CMRR (dB)	104
Minimum CMRR Range (dB)	95 to 105
Typical Gain Bandwidth Product (MHz)	0.7
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended Industrial
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
