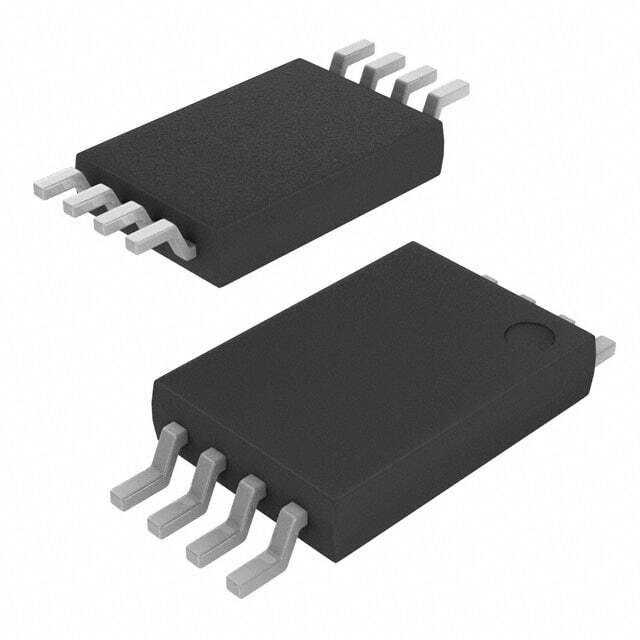

OP296HRUZ-REEL

SKU: 49254

Manufacturer: Analog Devices

Op Amp Dual Micropower Amplifier R-R I/O 12V 8-Pin TSSOP T/R

1500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Micropower Amplifier
Manufacturer Type	Micropower Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input/Output
Process Technology	BiCMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	0.8@5V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	12
Maximum Input Offset Current (uA)	0.008@5V
Maximum Input Bias Current (uA)	0.05@5V@-40C to 125C
Maximum Supply Current (mA)	0.12@5V
Typical Output Current (mA)	4@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.3@5V
Typical Input Noise Voltage Density (nV/rtHz)	26@5V
Typical Voltage Gain (dB)	106.02
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.19@5V
Minimum PSRR (dB)	85
Minimum CMRR (dB)	65
Minimum CMRR Range (dB)	65 to 70
Typical Gain Bandwidth Product (MHz)	0.35
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended Industrial
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3
Package Width	4.4
PCB changed	8
