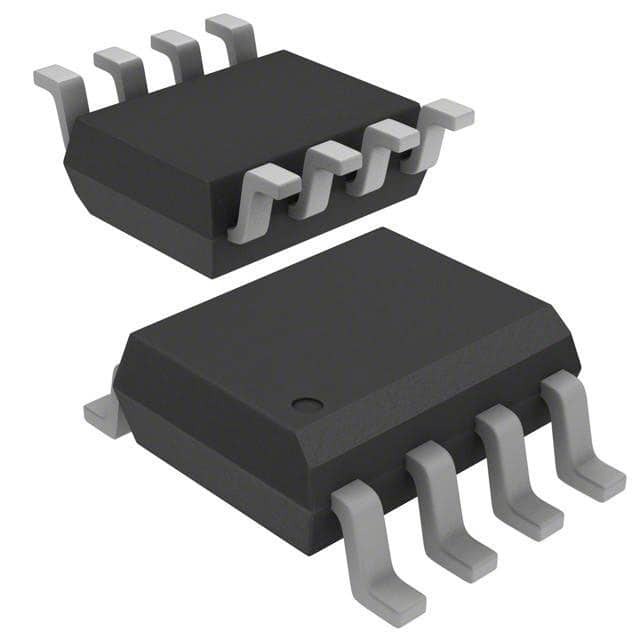

OP293FSZ-REEL

SKU: 144023

Manufacturer: Analog Devices

Op Amp Dual Micropower Amplifier ±18V/36V 8-Pin SOIC N T/R

2100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Micropower Amplifier
Manufacturer Type	Micropower Amplifier
Number of Channels per Chip	2
Maximum Input Offset Voltage (mV)	0.25@5V
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	28
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±1
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.004@5V@-40C to 125C
Maximum Input Bias Current (uA)	0.02@5V@-40C to 125C
Maximum Supply Current (mA)	0.029(Typ)@5V
Power Supply Type	Dual
Typical Slew Rate (V/us)	0.012@5V
Typical Input Noise Voltage Density (nV/rtHz)	65@5V
Typical Voltage Gain (dB)	106.02(Min)
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.05@5V
Minimum PSRR (dB)	97
Minimum CMRR (dB)	96
Minimum CMRR Range (dB)	95 to 105
Typical Gain Bandwidth Product (MHz)	0.035
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
