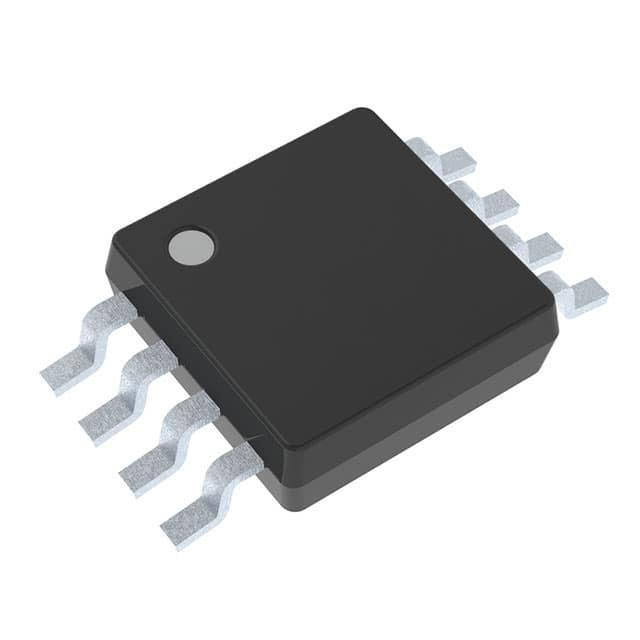

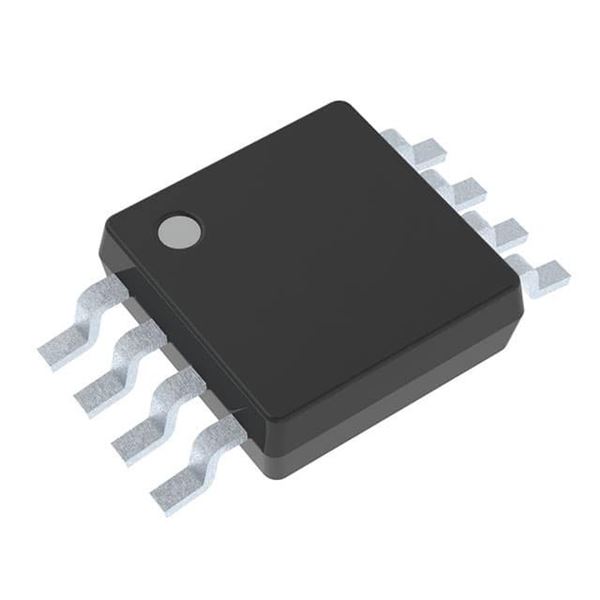

OP2177ARMZ-REEL

SKU: 27918

Manufacturer: Analog Devices

Op Amp Dual Precision Amplifier ±15V 8-Pin MSOP T/R

5950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	2
Maximum Input Offset Voltage (mV)	0.075@±5V
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±15
Typical Low Level Output Voltage (V)	-14.1
Typical High Level Output Voltage (V)	14.1
Maximum Input Offset Current (uA)	0.001@±5V@-40C to 125C
Typical Input Bias Current (uA)	0.0002@±5V@-40C to 125C
Maximum Input Bias Current (uA)	0.002@±5V@-40C to 125C
Maximum Supply Current (mA)	1@±5V
Typical Output Current (mA)	10@±5V
Power Supply Type	Dual
Typical Slew Rate (V/us)	0.7@±5V
Typical Input Noise Voltage Density (nV/rtHz)	7.9@±5V
Input Offset Voltage Drift (uV/°C)	0.7
Typical Voltage Gain (dB)	126.02
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.2@±5V
Minimum PSRR (dB)	118
Minimum CMRR (dB)	120
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	1.3
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
