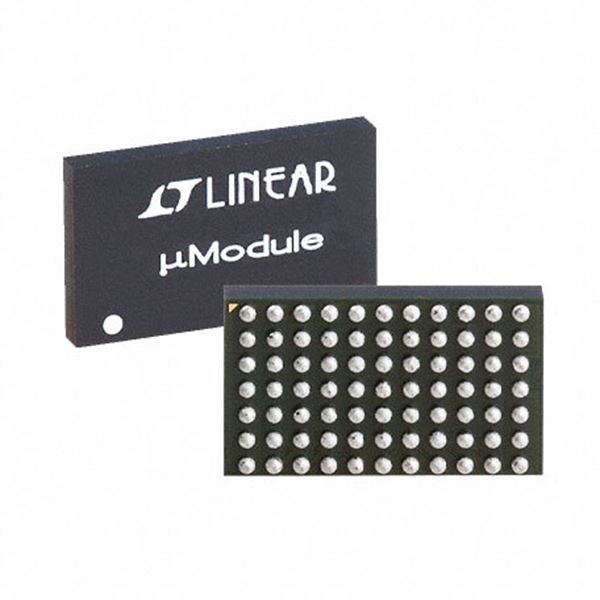

LTM8049EY#PBF Analog Devices

LTM8049EY#PBF

SKU: 115500

Manufacturer: Analog Devices

Dual SEPIC or Inverting μModule DC/DC Converter

Download sample

Request Free Samples

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	2
Minimum Input Voltage (V)	2.6
Maximum Input Voltage (V)	20
Output Voltage (V)	2.5 to 24
Output Current (A)	1(Min)
Input/Output Type	DC/DC
Typical Standby Current (mA)	0.002
Switching Frequency (kHz)	2500(Typ)
Switching Regulator	Yes
Load Regulation	0.3%(Typ)
Line Regulation	0.1%(Typ)
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tray
Product Weight (g)	0.8
Output Type	Adjustable
Original Package	BGA
Pin Count	77
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.82
Package Length	15
Package Width	9
PCB changed	77
