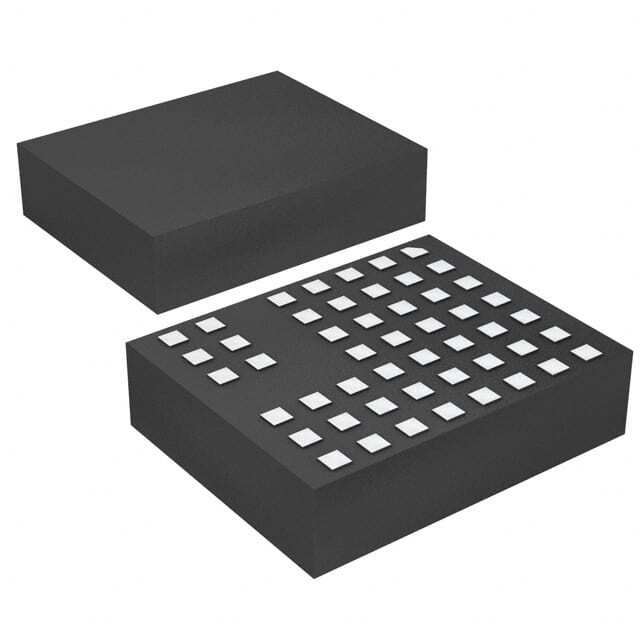

LTM8023EV#PBF Analog Devices

LTM8023EV#PBF

SKU: 133391

Manufacturer: Analog Devices

2A, 36V DC/DC Step-Down μModule (Power Module) Regulator

Download sample

Request Free Samples

220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Non-Isolated
Minimum Input Voltage (V)	3.6
Maximum Input Voltage (V)	36
Output Voltage (V)	0.8 to 10
Output Current (A)	2
Input/Output Type	DC/DC
Typical Standby Current (mA)	0
Switching Frequency (kHz)	325(Typ)
Switching Regulator	Yes
Load Regulation	0.4%(Typ)
Line Regulation	0.1%(Typ)
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tray
Product Weight (g)	0.9
Output Type	Adjustable
Original Package	LGA
Pin Count	50
Standard Package Method	LGA
Terminal Form	Surface Mount
Package Height	2.92(Max)
Package Length	11.25
Package Width	9
PCB changed	50
