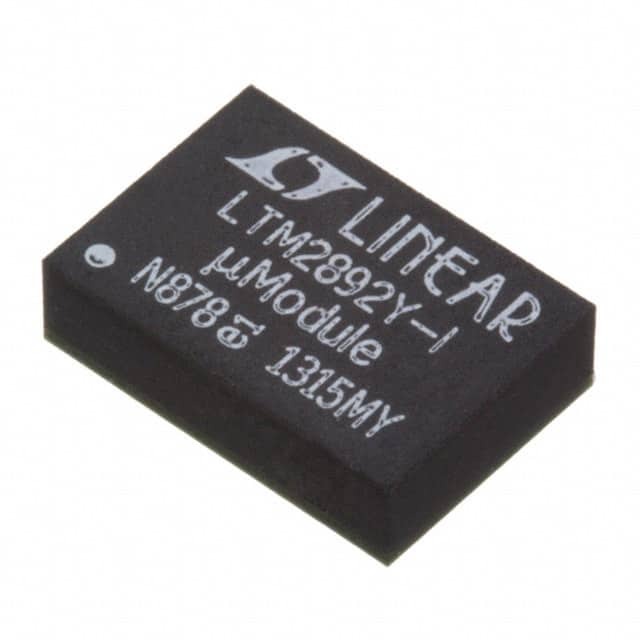

LTM2892IY-I#PBF

SKU: 59107

Manufacturer: Analog Devices

Digital Isolator Logic 6-CH 10Mbps Automotive 24-Pin BGA Tray

110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	SPI
Number of Channels per Chip	6
Maximum Data Rate	10Mbps
Maximum Rise Time (ns)	250
Maximum Fall Time (ns)	250
Output Type	Logic
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	3
Maximum Propagation Delay Time (tPHL) (ns)	350
Minimum Isolation Voltage (Vrms)	4200
Maximum Propagation Delay Time (tPLH) (ns)	350
Maximum Working Insulation Voltage	850Vp
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Forward/Reverse Channels	3/3
Minimum Common Mode Rejection (kV/us)	50
Maximum ESD Protection Voltage (kV)	±15@HBM
Supplier Temperature Grade	Industrial
Coupling Type	Magnetic Coupling
Standard Package Method	BGA
Original Package	BGA
Pin Count	24
Terminal Form	Surface Mount
Package Height	2.41
Package Length	9
Package Width	6.25
PCB changed	24
