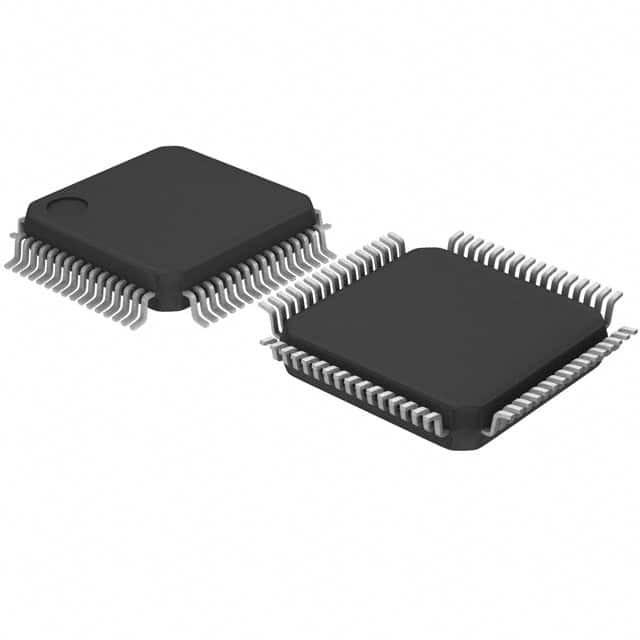

LTC7871ELWE#PBF

SKU: 133382

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Down/Step Up 780kHz 64-Pin LQFP EP Tray

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	1.2 to 100
Maximum Switching Frequency (kHz)	780
Minimum Input Voltage (V)	1.2
Maximum Input Voltage (V)	100
Operating Supply Voltage (V)	1.2 to 100
Maximum Supply Current (mA)	0.016
Minimum Switching Frequency (kHz)	640
Typical Switching Frequency (kHz)	710
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Original Package	LQFP EP
Pin Count	64
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	10
Package Width	10
