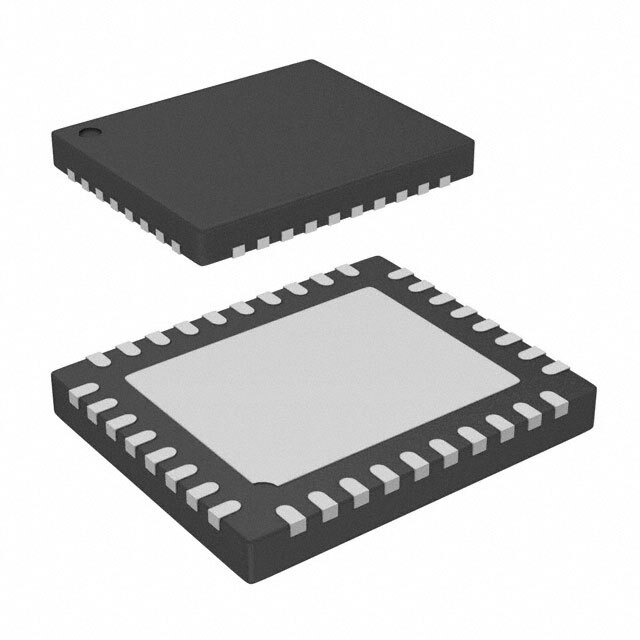

LTC7841EUHE#TRPBF

SKU: 83766

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Up 585kHz Automotive 36-Pin QFN EP T/R

4250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Number of Outputs	1
Topology	Step Up
Output Voltage (V)	60(Max)
Maximum Output Current (A)	40
Maximum Switching Frequency (kHz)	585
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	60
Operating Supply Voltage (V)	4.5 to 60
Maximum Supply Current (mA)	4
Typical Gate Driver Pull Up Resistance (Ohm)	1.2/1.2
Typical Gate Driver Pull Down Resistance (Ohm)	1.2/1.2
Minimum Switching Frequency (kHz)	488
Typical Switching Frequency (kHz)	535
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	36
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	6
Package Width	5
PCB changed	36
