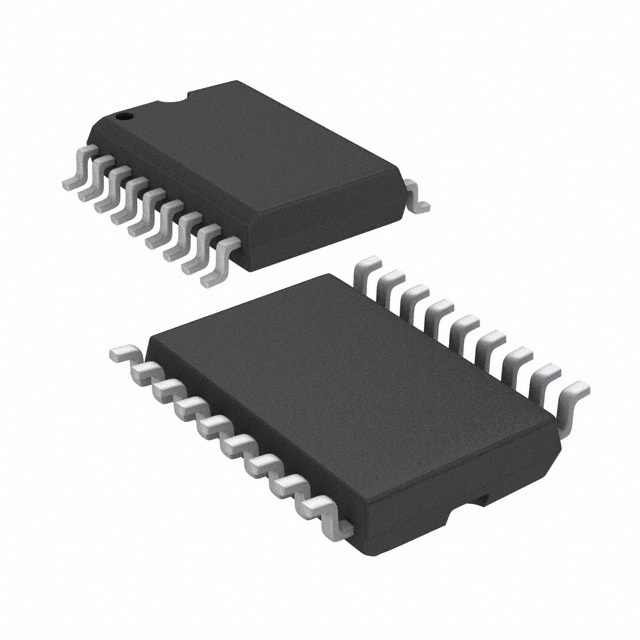

LTC7541AJSW#TRPBF

SKU: 55683

Manufacturer: Analog Devices

DAC 1-CH R-2R 12-bit 18-Pin SOIC W T/R

1200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	12bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Digital Interface Type	Parallel
Output Type	Current
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	16
Power Supply Type	Single
Maximum Power Dissipation (mW)	450
Integral Nonlinearity Error	±1LSB
Full Scale Error	±8LSB
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Pin Count	18
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.34(Max)
Package Length	11.76(Max)
Package Width	7.6(Max)
PCB changed	18
