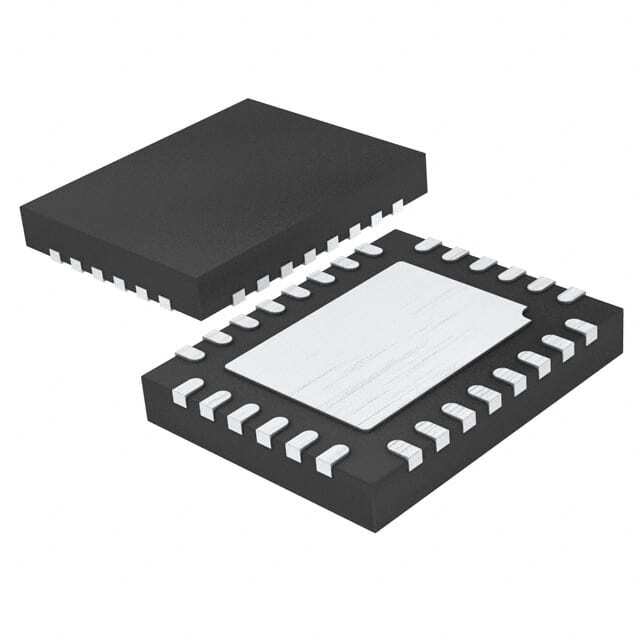

LTC7149EUFD#PBF

SKU: 41373

Manufacturer: Analog Devices

Conv DC-DC 3.4V to 60V Synchronous Step Down Single-Out 0V to -28V 4A 28-Pin QFN EP Tube

1010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	300 to 3000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0 to -28
Maximum Output Current (A)	4
Minimum Input Voltage (V)	3.4
Maximum Input Voltage (V)	60
Operating Supply Voltage (V)	3.4 to 60
Typical Switch Current (A)	6
Typical Quiescent Current (uA)	1400
Efficiency (%)	92
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Pin Count	28
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	4
PCB changed	28
