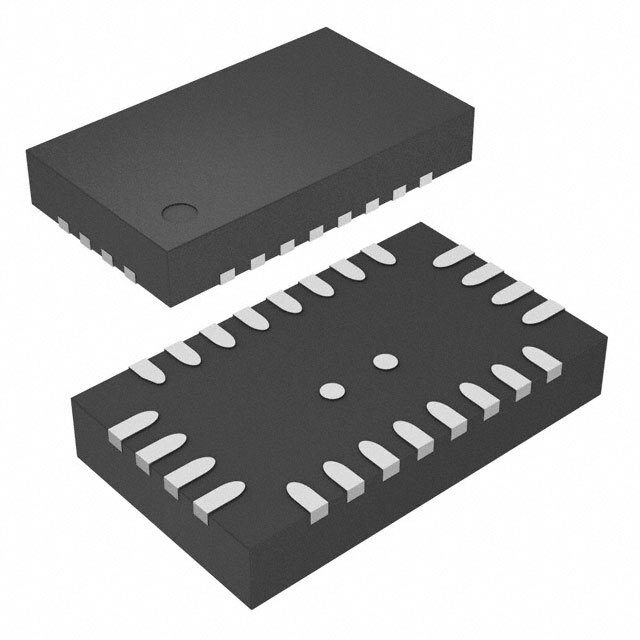

LTC7124EUDD#TRPBF

SKU: 140461

Manufacturer: Analog Devices

Conv DC-DC 3.1V to 17V Synchronous Step Down Dual-Out 0.6V to 16.83V 3.5A/3.5A 24-Pin QFN EP T/R

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	500 to 4000
Switching Regulator	Yes
Number of Outputs	2
Output Voltage (V)	0.6 to 16.83
Maximum Output Current (A)	3.5
Minimum Input Voltage (V)	3.1
Maximum Input Voltage (V)	17
Operating Supply Voltage (V)	3.1 to 17
Typical Switch Current (A)	5
Typical Quiescent Current (uA)	8
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	24
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	3
PCB changed	24
